40-Channel 14-Bit 3 V/5 V Single-Supply Voltage-Output DAC
Key Features
• Guaranteed Monotonic
• INL error: ±4 LSB max
• On-Chip 1.25 V/2.5 V Reference
• With 10 ppm/ºC reference
• Temperature range: –40°C to +85°C
• Rail-to-rail output amplifier
• Robust 6.5 kV HBM and 2 kV FICDM ESD rating
• User interfaces: Parallel Serial(SPI®-, QSPI™-, MICROWIRE™-, DSP-compatible, featuring data readback)I2C®-compatible
• Channel monitor
• Simultaneous output update via LDAC
• Clear function to user programmable code
• Amplifier boost mode to optimize slew rate
• User programmable offset and gain adjust
• Toggle mode enables square wave generation
• Thermal monitor

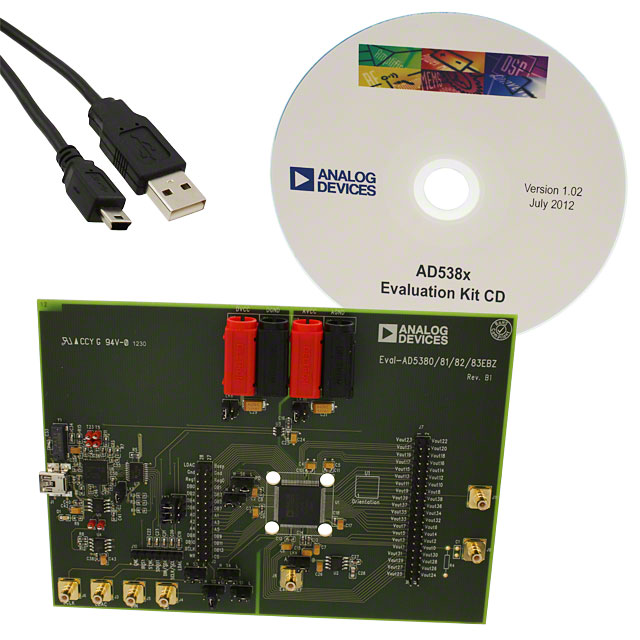

Description
AI
The AD5380 is a complete, single-supply, 40-channel, 14-bit DAC available in a 100-lead LQFP package. All 40 channels have an on-chip output amplifier with rail-to-rail operation. The AD5380 includes a programmable internal 1.25 V/2.5 V, 10 ppm/°C reference, an on-chip channel monitor function that multiplexes the analog outputs to a common MON_OUT pin for external monitoring, and an output amplifier boost mode that allows optimization of the amplifier slew rate. The AD5380 contains a double-buffered parallel interface that features a 20 nsWRpulse width, an SPI-, QSPI-, -MICROWIRE, -DSP compatible serial interface with interface speeds in excess of 30 MHz, and an I2C-compatible interface that supports a 400 kHz data transfer rate.An input register followed by a DAC register provides double buffering, allowing the DAC outputs to be updated independently or simultaneously using theLDACinput.Each channel has a programmable gain and offset adjust register that allows the user to fully calibrate any DAC channel. Power consumption is typically 0.25 mA/channel with boost off.APPLICATIONSVariable optical attenuators (VOA)Level setting (ATE)Optical micro-electro-mechanical systems (MEMS)Control systemsInstrumentation
