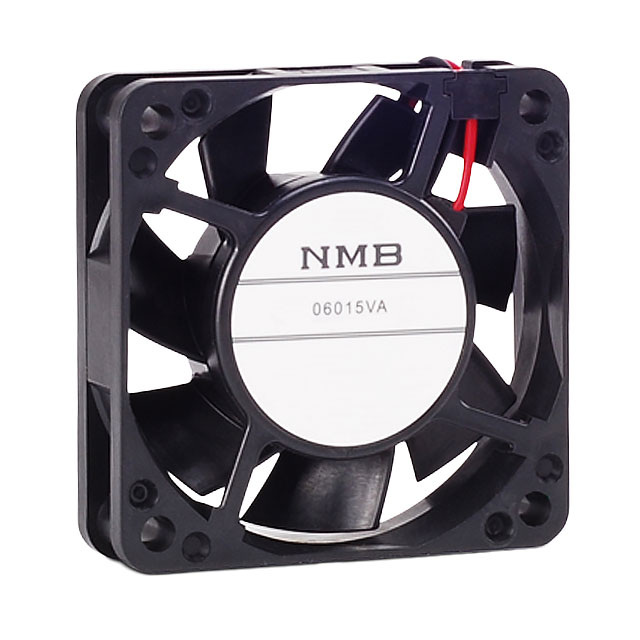

06015VA Series

Catalog

FAN AXIAL 60X15MM 12VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Noise	Air Flow	Air Flow	Weight	Weight	Fan Type	Termination	Static Pressure	Static Pressure	Width [y]	Voltage - Rated	Bearing Type	Features	Ingress Protection
NMB TECHNOLOGIES 2406VL-04W-B50-B00	13.8 VDC	6 VDC	Plastic	Plastic	120 mA	40000 Hrs	60 mm	60 mm	1.44 W	70 °C	-10 °C	5100 RPM	33.5 dB(A)	17.6 CFM	0.493 m³/min	0.121 lb	54.88 g	Tubeaxial	2 Wire Leads	57.3 Pa	0.23 in H2O	15 mm	12 VDC	Ball
NMB TECHNOLOGIES 2406VL-05W-B59-B00	27.6 VDC	10 VDC	Plastic	Plastic	60 mA	40000 Hrs	60 mm	60 mm	1.44 W	70 °C	-10 °C	5100 RPM	33.5 dB(A)	17.6 CFM	0.493 m³/min	0.121 lb	54.88 g	Tubeaxial	3 Wire Leads	57.3 Pa	0.23 in H2O	15 mm	24 VDC	Ball	Locked Rotor Sensor
NMB TECHNOLOGIES 2406VL-04W-B59-B00	13.8 VDC	6 VDC	Plastic	Plastic	120 mA	40000 Hrs	60 mm	60 mm	1.44 W	70 °C	-10 °C	5100 RPM	33.5 dB(A)	17.6 CFM	0.493 m³/min	0.121 lb	54.88 g	Tubeaxial	3 Wire Leads	57.3 Pa	0.23 in H2O	15 mm	12 VDC	Ball	Locked Rotor Sensor
NMB TECHNOLOGIES 2406VL-05W-B69-B00	27.6 VDC	10 VDC	Plastic	Plastic	70 mA	40000 Hrs	60 mm	60 mm	1.68 W	70 °C	-10 °C	5600 RPM	36.5 dB(A)	19.4 CFM	0.543 m³/min	0.121 lb	54.88 g	Tubeaxial	3 Wire Leads	67.3 Pa	0.27 in H2O	15 mm	24 VDC	Ball	Locked Rotor Sensor
NMB TECHNOLOGIES 06015VA-24P-CA-00	27.6 VDC	10 VDC	Plastic	Plastic	70 mA		60 mm	60 mm	1.68 W	70 °C	-10 °C	5600 RPM	36.5 dB(A)	19.4 CFM	0.543 m³/min	0.132 lb	59.87 g	Tubeaxial	2 Wire Leads	67.3 Pa	0.27 in H2O	15 mm	24 VDC	Ball		IP69K - Dust Tight High Temp Water Jets Waterproof
NMB TECHNOLOGIES 2406VL-05W-B49-B00	27.6 VDC	10 VDC	Plastic	Plastic	50 mA	40000 Hrs	60 mm	60 mm	1.2 W	70 °C	-10 °C	4600 RPM	31 dB(A)	15.9 CFM	0.445 mł/min	0.121 lb	54.88 g	Tubeaxial	3 Wire Leads	47.3 Pa	0.19 in H2O	15 mm	24 VDC	Ball	Locked Rotor Sensor
NMB TECHNOLOGIES 2406VL-05W-B50-B00	27.6 VDC	10 VDC	Plastic	Plastic	60 mA	40000 Hrs	60 mm	60 mm	1.44 W	70 °C	-10 °C	5100 RPM	33.5 dB(A)	17.6 CFM	0.493 m³/min	0.121 lb	54.88 g	Tubeaxial	2 Wire Leads	57.3 Pa	0.23 in H2O	15 mm	24 VDC	Ball
NMB TECHNOLOGIES 2406VL-05W-B39-B00	27.6 VDC	10 VDC	Plastic	Plastic	40 mA	40000 Hrs	60 mm	60 mm	960 mW	70 °C	-10 °C	4100 RPM	28.5 dB	14.5 CFM	0.406 m³/min	0.121 lb	54.88 g	Tubeaxial	3 Wire Leads	39.8 Pa	0.16 in H2O	15 mm	24 VDC	Ball	Locked Rotor Sensor
NMB TECHNOLOGIES 2406VL-05W-B49-B50	27.6 VDC	10 VDC	Plastic	Plastic	50 mA	40000 Hrs	60 mm	60 mm	1.2 W	70 °C	-10 °C	4600 RPM	31 dB(A)	15.9 CFM	0.445 mł/min	0.121 lb	54.88 g	Tubeaxial	3 Wire Leads	47.3 Pa	0.19 in H2O	15 mm	24 VDC	Ball	Speed Sensor (Tach)
NMB TECHNOLOGIES 2406VL-04W-B59-B50	13.8 VDC	6 VDC	Plastic	Plastic	120 mA	40000 Hrs	60 mm	60 mm	1.44 W	70 °C	-10 °C	5100 RPM	33.5 dB(A)	17.6 CFM	0.493 m³/min	0.121 lb	54.88 g	Tubeaxial	3 Wire Leads	57.3 Pa	0.23 in H2O	15 mm	12 VDC	Ball	Speed Sensor (Tach)
