LIS2DW12 Series

LIS2DW12 adapter board for a standard DIL 24 socket

Catalog

LIS2DW12 adapter board for a standard DIL 24 socket

Part	Suggested Programming Environment	Interconnect System	Type	Utilized IC / Part	Platform	Function	Contents	Package / Case	Supplier Device Package	Bandwidth	Features	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Sensitivity (LSB/g)	Axis [z]	Axis [y]	Axis [x]	Acceleration Range	Mounting Type
STMicroelectronics STEVAL-MKI179V1	Unico	DIL24	Sensor	LIS2DW12	Professional MEMS Tool	Accelerometer	Board(s)

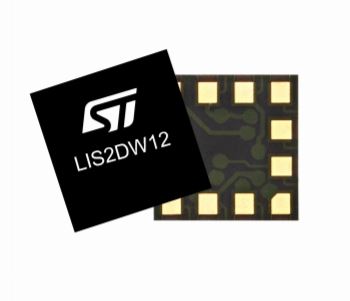

STMicroelectronics LIS2DW12TR			Digital					12-WFLGA	12-LGA (2x2)	400 Hz	Selectable Scale	3.6 V	1.62 V	85 °C	-40 C	I2C SPI	512 LSB/g 4098 LSB/g	Z	Y	X	2 g 4 g 8 g 16 g	Surface Mount

Catalog

LIS2DW12 adapter board for a standard DIL 24 socket

Description

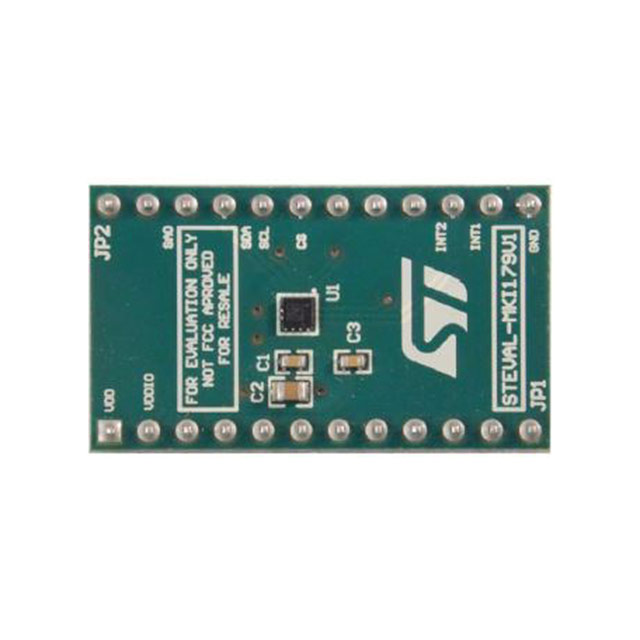

The STEVAL-MKI179V1 adapter board is designed to facilitate the evaluation of the LIS2DW12 3-axis accelerometer. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application. The STEVAL-MKI179V1 can be plugged into a standard DIL24 socket. The adapter provides the complete LIS2DW12 pinout and comes ready to use with the required decoupling capacitors on the VDD power supply line. This adapter is supported by the STEVAL-MKI109V3 and STEVAL-MKI109D evaluation platforms that include a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable MEMS Studio graphical user interface or dedicated software routines for customized applications.
