JM38510/13301 Series

Low Cost 10-Bit Monolithic D/A Converter

Catalog

Low Cost 10-Bit Monolithic D/A Converter

Part	Operating Temperature [Max]	Operating Temperature [Min]	INL/DNL (LSB)	Settling Time	Supplier Device Package	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Package / Case	Package / Case	Package / Case	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Architecture	Reference Type	Data Interface	Output Type	Mounting Type	Number of Bits [custom]	Package / Case

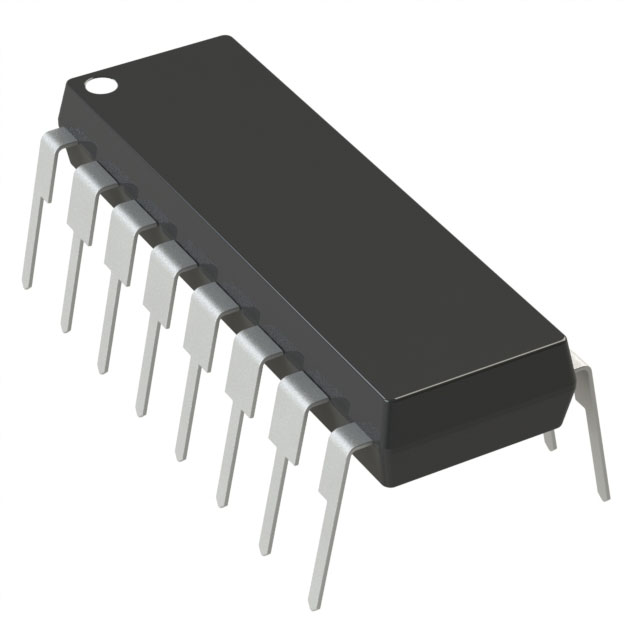

Analog Devices AD561JNZ	70 °C	0 °C	0.25 LSB 0.5 LSB	250 ns	16-PDIP	16.5 V	4.5 V	0.3 in	16-DIP	7.62 mm	16.5 V	-10.8 V 4.5 V	R-2R	Internal	Parallel	Current - Unbuffered	Through Hole	10
Analog Devices JM38510/13301BEA
Analog Devices AD561KNZ	70 °C	0 °C	0.125 LSB 0.25 LSB	250 µs	16-PDIP	16.5 V	4.5 V	0.3 in	16-DIP	7.62 mm	16.5 V	-10.8 V 4.5 V	R-2R	Internal	Parallel	Current - Unbuffered	Through Hole	10
Analog Devices AD561JCHIPS	70 °C	0 °C	0.25 LSB 0.5 LSB	250 ns	Die	16.5 V	4.5 V		Die		16.5 V	-10.8 V 4.5 V	R-2R	Internal	Parallel	Current - Unbuffered	Surface Mount	10
Analog Devices AD561KN					16-PDIP			0.3 in	16-DIP	7.62 mm							Through Hole

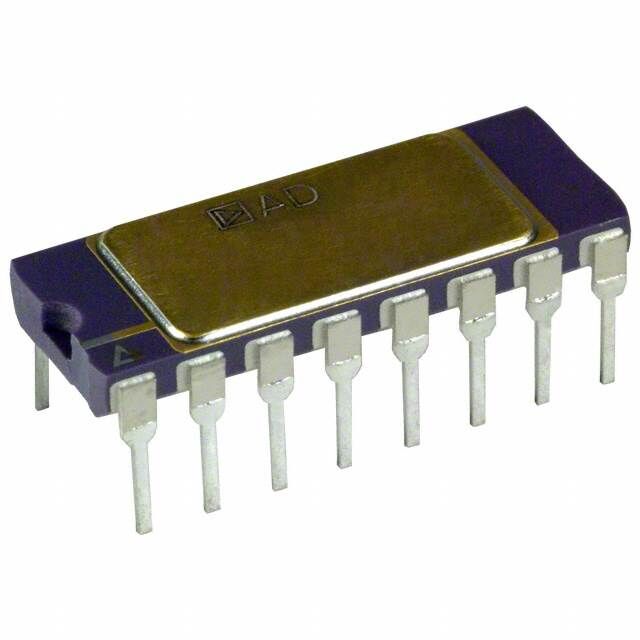

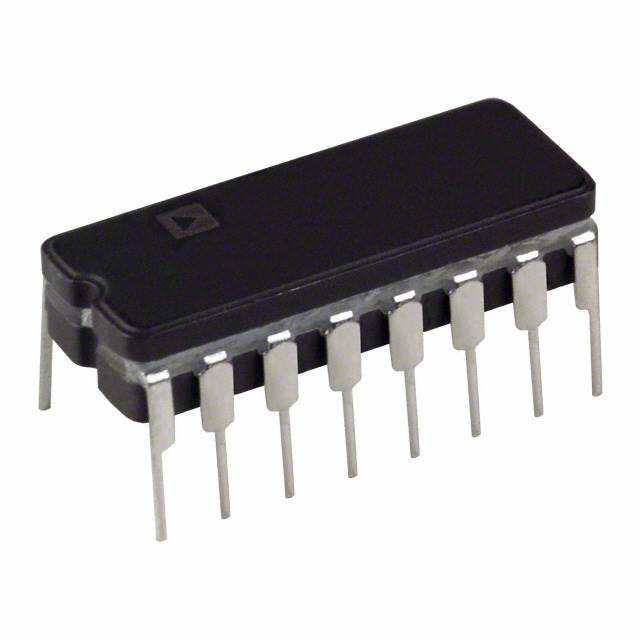

Analog Devices AD561SD	125 °C	-55 °C	0.25 LSB 0.5 LSB	250 µs	16-CDIP	16.5 V	4.5 V		16-CDIP		16.5 V	-10.8 V 4.5 V	R-2R	Internal	Parallel	Current - Unbuffered	Through Hole	10	0.3 in 7.62 mm
Analog Devices AD561SD/883B

Catalog

Low Cost 10-Bit Monolithic D/A Converter

Key Features

• Complete Current Output Converted

• High Stability Buried Zener Reference

• Laser Trimmed to High Accuracy (1/4 LSB Max Error, AD561K, T)

• Trimmed Output Application Resistors for 0 V to +10 V, ±5 V Ranges

• Fast Settling - 250 ns to 1/2 LSB

• Guaranteed Monotonocity Over Full Operating Temperature Range

• TTL/DTL and CMOS Compatible (Positive True Logic)

• Single Chip Monolithic Construction

• Available in Chip Form

• MIL-STD-883-Compliant Versions Available

Description

The AD561 is an integrated circuit 10-bit digital-to-analog converter combined with a high stability voltage reference fabricated on a single monolithic chip. Using ten precision high-speed current-steering switches, a control amplifier, voltage reference, and laser-trimmed thin-film SiCr resistor network, the device produces a fast, accurate analog output current. Laser trimmed output application resistors are also included to facilitate accurate, stable current-to-voltage conversion; they are trimmed to 0.1% accuracy, thus eliminating external trimmers in many situations.Several important technologies combine to make the AD561 the most accurate and most stable 10-bit DAC available. The low temperature coefficient, high stability thin-film network is trimmed at the wafer level by a fine resolution laser system to 0.01% typical linearity. This results in an accuracy specification of ±1/4 LSB max for the K and T versions, and 1/2 LSB max for the J and S versions.The AD561 also incorporates a low noise, high stability subsurface zener diode to produce a reference voltage with excellent long term stability and temperature cycle characteristics, which challenge the best discrete Zener references. A temperature compensation circuit is laser-trimmed to allow custom correction of the temperature coefficient of each device. This results in a typical full-scale temperature coefficient of 15 ppm/°C; the TC is tested and guaranteed to 30 ppm/°C max for the K and T versions, 60 ppm/°C max for the S, and 80 ppm/°C for the J.The AD561 is available in four performance grades. The AD561J and K are specified for use over the 0°C to +70°C temperature range and are available in either a 16-pin hermetically-sealed ceramic DIP or a 16-pin molded plastic DIP. The AD561S and T grades are specified for the -55°C to +125°C range and are available in the ceramic package.
