AMEL20 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 9V 20W

Part	Line Regulation	Approval Agency	Standard Number	Weight [custom]	Weight [custom]	Load Regulation	Voltage - Output 1	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Applications	Package / Case	Number of Outputs	Current - Output (Max) [Max]	Type	Weight [custom]	Weight [custom]	Load Regulation	Features	Weight	Weight
aimtec AMEL20-9S277HAVZ	0.5 %	CE cURus EN IEC UL	60335-1 60601-1 61558-1 62368-1	55 g	0.121 lb	±1%	9 V	20 W	-40 °C	85 °C	1.07 in	0.94 "	2.06 "	27.2 mm	52.4 mm	24 mm	85 %	85 VAC 100 V	305 VAC 430 VDC	Through Hole	Household Appliances ITE (Commercial) Medical	6-DIP Module 4 Leads	1	2.2 A	Enclosed
aimtec AMEL20-5SMAZ	1 %	CB CE cULus cURus EN IEC UL	60601-1				5 V	20 W			1.21 in	0.99 "	2.22 "	30.9 mm	56.5 mm	25.1 mm	77 %	90 VAC 130 VDC	264 VAC 370 VDC	Through Hole	ITE (Commercial) Medical	5-DIP Module 4 Leads	1	4 A	Enclosed	0.154 lb	70 g	2 %	Universal Input
aimtec AMEL20-24SMAZ	1 %	CB CE cULus cURus EN IEC UL	60601-1				24 V	20 W			1.21 in	0.99 "	2.22 "	30.9 mm	56.5 mm	25.1 mm	79 %	90 VAC 130 VDC	264 VAC 370 VDC	Through Hole	ITE (Commercial) Medical	5-DIP Module 4 Leads	1	840 mA	Enclosed	0.154 lb	70 g	2 %	Universal Input
aimtec AMEL20-5SAZ	1 %	CB CE cURus EN FCC IEC UL	60950-1				5 V	20 W	-40 °C	80 ¯C	1.21 in	0.99 "	2.22 "	30.9 mm	56.5 mm	25.1 mm	74 %	90 VAC 130 VDC	305 VAC 430 VDC	Through Hole	ITE (Commercial)	5-DIP Module 4 Leads	1	4 A	Enclosed	0.154 lb	70 g	2 %
aimtec AMEL20-15SAZ	1 %	CB CE cURus FCC				±1%	15 V	20 W	-40 °C	80 ¯C	1.21 in	0.99 "	2.22 "	30.9 mm	56.5 mm	25.1 mm	80 %	90 VAC	305 VAC	Through Hole	ITE (Commercial)	5-DIP Module 4 Leads	1	1.33 A	Enclosed	0.154 lb	70 g

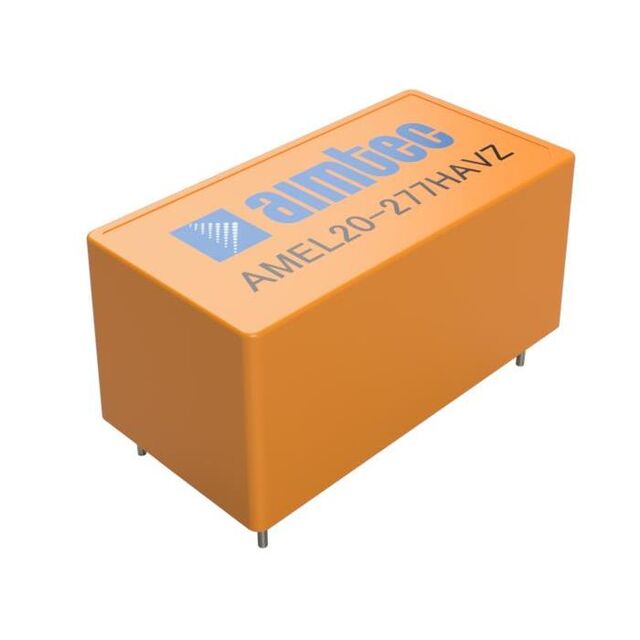

aimtec AMEL20-12S277HAVZ	0.5 %	CE cURus EN IEC UL	60335-1 60601-1 61558-1 62368-1	55 g	0.121 lb	±1%	12 V	20 W	-40 °C	85 °C	1.07 in	0.94 "	2.06 "	27.2 mm	52.4 mm	24 mm	86 %	85 VAC 100 V	305 VAC 430 VDC	Through Hole	Household Appliances ITE (Commercial) Medical	6-DIP Module 4 Leads	1	1.67 A	Enclosed				DC Input Capable Universal Input
aimtec AMEL20-12S277HAVZ-B	0.5 %	CE UL	60335-1 60601-1 62368-1	55 g	0.121 lb	±1%	12 V	20 W	-40 °C	85 °C	1.07 in	0.94 "	2.06 "	27.2 mm	52.4 mm	24 mm	86 %	85 VAC 100 V	305 VAC 430 VDC	Through Hole	Household Appliances ITE (Commercial) Medical	6-DIP Module 4 Leads	1	1.67 A	Enclosed
aimtec AMEL20-9SCJZ	0.5 %					±1%	9 V		-25 °C	70 °C	1.13 "	0.93 "	2.12 in	28.8 mm	53.8 mm	23.5 mm		85 VAC 100 V	264 VAC 370 VDC	Through Hole	ITE (Commercial)	4-DIP Module	1		Enclosed				Universal Input	60 g	0.132 lb
aimtec AMEL20-12SAZ	1 %	CB CE cURus EN FCC IEC UL	60950-1			±1%	12 V	20 W	-40 °C	80 ¯C	1.21 in	0.99 "	2.22 "	30.9 mm	56.5 mm	25.1 mm	80 %	90 VAC	305 VAC	Through Hole	ITE (Commercial)	5-DIP Module 4 Leads	1	1.66 A	Enclosed	0.154 lb	70 g
aimtec AMEL20-12SMAZ	1 %	CB CE cURus				±1%	12 V	20 W			1.21 in	0.99 "	2.22 "	30.5 mm	56.5 mm	25.1 mm	80 %	90 VAC	264 VAC	Through Hole	ITE (Commercial) Medical	5-DIP Module 4 Leads	1	1.66 A	Enclosed	0.154 lb	70 g		Universal Input
