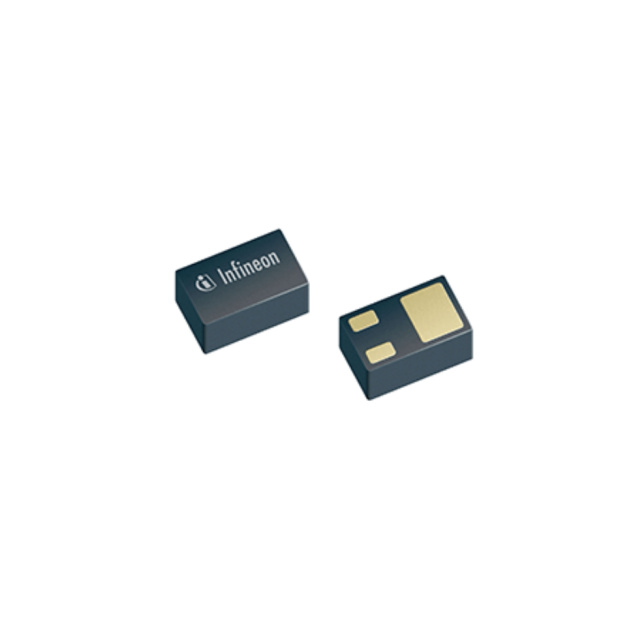

BFR740 Series
Manufacturer: INFINEON
Beta
⌘K
BIPOLAR - RF TRANSISTOR, NPN, 4 V, 47 GHZ, 160 MW, 40 MA, 160 ROHS COMPLIANT: YES
| Part | Gain | Current - Collector (Ic) (Max) [Max] | Noise Figure (dB Typ @ f) [Min] | Noise Figure (dB Typ @ f) [Max] | Supplier Device Package | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | Voltage - Collector Emitter Breakdown (Max) [Max] | Operating Temperature | Power - Max [Max] | Mounting Type | Frequency - Transition | Package / Case | Transistor Type | Noise Figure (dB Typ @ f) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 24.5 dB | 30 mA | 0.5 dB | 0.8 dB | PG-TSLP-3 | 160 | 4.7 V | 150 °C | 160 mW | Surface Mount | 42 GHz | SC-101 SOT-883 | NPN | |
 INFINEON | 11 dB | 40 mA | PG-TSLP-3-10 TSLP-3-10 | 160 | 150 °C | 160 mW | Surface Mount | 42 GHz | 3-XFDFN | NPN | 1.5 dB |
