STD1HN60 Series
Manufacturer: STMicroelectronics
Beta
⌘K

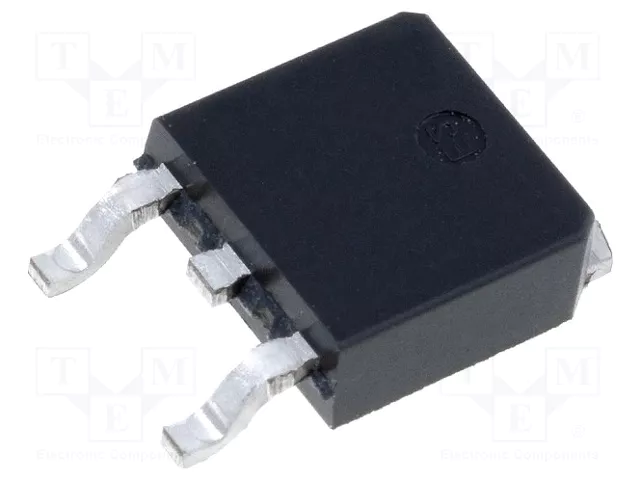

N-CHANNEL 600 V, 6.4 OHM TYP., 1.2 A, SUPERMESH3(TM) POWER MOSFET IN DPAK PACKAGE
| Part | Drain to Source Voltage (Vdss) | Technology | Vgs(th) (Max) @ Id | Mounting Type | Package / Case | Input Capacitance (Ciss) (Max) @ Vds | Supplier Device Package | Vgs (Max) | Rds On (Max) @ Id, Vgs | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Power Dissipation (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Gate Charge (Qg) (Max) @ Vgs [Max] | FET Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 600 V | MOSFET (Metal Oxide) | 4.5 V | Surface Mount | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 140 pF | DPAK | 30 V | 8 Ohm | 1.2 A | 10 V | 27 W | 150 °C | -55 °C | 9.5 nC | N-Channel |
