AD9163 Series
Manufacturer: Analog Devices
Beta
⌘K
16-BIT, 12 GSPS, RF DAC AND DIGITAL UPCONVERTER
| Part | Reference Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Differential Output | Number of Bits | Architecture | Data Interface | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Mounting Type | Package / Case | INL/DNL (LSB) | Supplied Contents | Utilized IC / Part | DAC Type | Number of DAC's | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | External Internal | 169-CSPBGA (11x11) | 85 °C | -40 °C | Current - Unbuffered | 16 | Quad-Switch | JESD204B | 1.14 V 2.375 V | 1.326 V 2.625 V | 1.14 V | 1.326 V | Surface Mount | 169-VFBGA CSPBGA | 1.7 LSB 2.7 LSB | ||||||

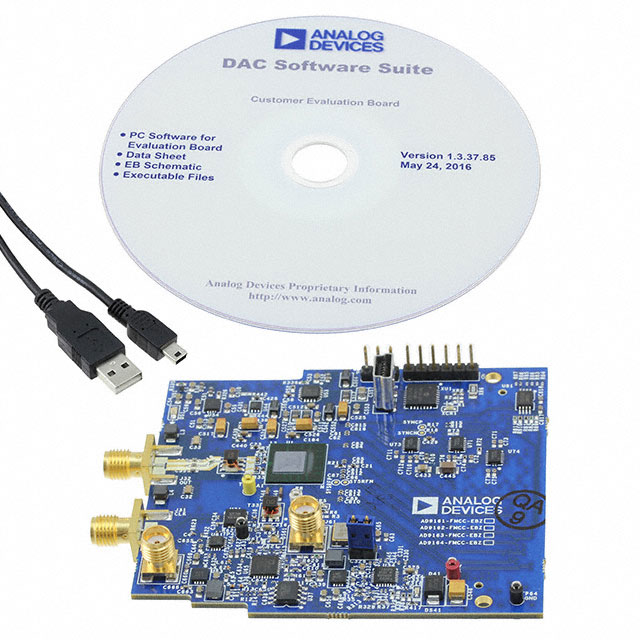

 Analog Devices | 16 | JESD204B Serial | Board(s) | AD9163 | Current | 1 | 12 G | ||||||||||||||
Analog Devices | External Internal | 169-CSPBGA (11x11) | 85 °C | -40 °C | Current - Unbuffered | 16 | Quad-Switch | JESD204B | 1.14 V 2.375 V | 1.326 V 2.625 V | 1.14 V | 1.326 V | Surface Mount | 169-VFBGA CSPBGA | 1.7 LSB 2.7 LSB |
