EPC2218 Series
Manufacturer: EPC
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

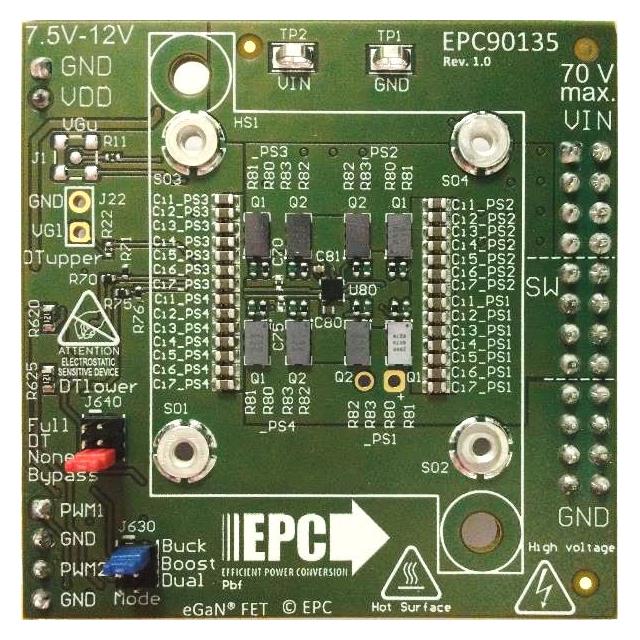

DEV BD 1/2BRIDGE PARALEL EPC2218
| Part | Supplied Contents | Type | Utilized IC / Part | Contents | FET Type | Grade | Drain to Source Voltage (Vdss) | Input Capacitance (Ciss) (Max) | Package / Case | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) | Vgs (Max) Positive | Gate Charge (Max) | Current - Continuous Drain (Id) (Ta) | Qualification | Vgs(th) (Max) | Mounting Type | Technology | Package Name | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EPC | Board(s) | Power Management | EPC2218 | Board | |||||||||||||||||

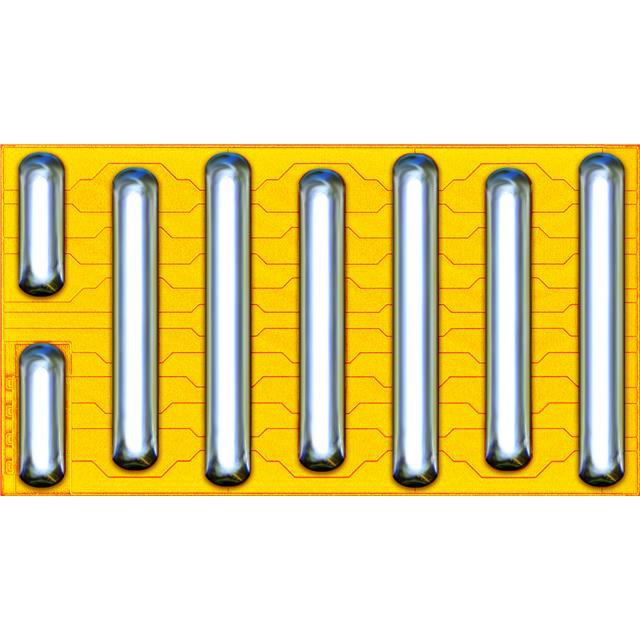

 EPC | N-Channel | Automotive | 80 V | 1570 pF | Die | 5 V | 3.2 mOhm | 6 V | 13.6 nC | 60 A | AEC-Q101 | 2.5 V | Surface Mount | GaNFET (Gallium Nitride) | Die | -40 °C | 150 °C |
