MCP1501 Series

High Precision Buffered Voltage Reference

Catalog

High Precision Buffered Voltage Reference

Part	Supplier Device Package	Voltage - Output (Min/Fixed)	Output Type	Temperature Coefficient	Voltage - Input [Max]	Voltage - Input [Min]	Reference Type	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Supply	Tolerance	Package / Case	Noise - 10Hz to 10kHz	Noise - 0.1Hz to 10Hz	Package / Case [y]	Package / Case [x]	Qualification	Grade
Microchip Technology MCP1501T-12E/RW	8-WDFN (2x2)	1.25 V	1.81 mOhm	50 ppm/°C	5.5 V	1.7 V	Series	20 mA	-40 °C	125 °C	Surface Mount	550 µA	0.1 %	8-WFDFN Exposed Pad
Microchip Technology MCP1501T-40E/SN	8-SOIC	4.096 V	1.81 mOhm	50 ppm/°C			Series	20 mA	-40 °C	125 °C	Surface Mount	550 µA	0.1 %	8-SOIC	110 µVrms	20 µVrms	3.9 mm	0.154 in
Microchip Technology MCP1501-20E/SN	8-SOIC	2.048 V	1.81 mOhm	50 ppm/°C	5.5 V	2.25 V	Series	20 mA	-40 °C	125 °C	Surface Mount	550 µA	0.1 %	8-SOIC			3.9 mm	0.154 in
Microchip Technology MCP1501T-33E/RW	8-WDFN (2x2)	3.3 V	1.81 mOhm	50 ppm/°C	5.5 V	3.5 V	Series	20 mA	-40 °C	125 °C	Surface Mount	550 µA	0.1 %	8-WFDFN Exposed Pad
Microchip Technology MCP1501T-25E/CHYVAO	SOT-23-6	2.5 V	1.81 mOhm	50 ppm/°C	5.5 V	2.7 V	Series	20 mA	-40 °C	125 °C	Surface Mount	550 µA	0.1 %	SOT-23-6					AEC-Q100	Automotive
Microchip Technology MCP1501T-18E/CHY	SOT-23-6	1.8 V	1.81 mOhm	50 ppm/°C			Series	20 mA	-40 °C	125 °C	Surface Mount	550 µA	0.1 %	SOT-23-6
Microchip Technology MCP1501-33E/SN	8-SOIC	3.3 V	1.81 mOhm	50 ppm/°C	5.5 V	3.5 V	Series	20 mA	-40 °C	125 °C	Surface Mount	550 µA	0.1 %	8-SOIC			3.9 mm	0.154 in
Microchip Technology MCP1501T-33E/CHY	SOT-23-6	3.3 V	1.81 mOhm	50 ppm/°C	5.5 V	3.5 V	Series	20 mA	-40 °C	125 °C	Surface Mount	550 µA	0.1 %	SOT-23-6
Microchip Technology MCP1501-30E/SN	8-SOIC		1.81 mOhm	50 ppm/°C	5.5 V	3.2 V	Series	20 mA	-40 °C	125 °C	Surface Mount	550 µA	0.1 %	8-SOIC			3.9 mm	0.154 in
Microchip Technology MCP1501T-18E/SN	8-SOIC	1.8 V	1.81 mOhm	50 ppm/°C			Series	20 mA	-40 °C	125 °C	Surface Mount	550 µA	0.1 %	8-SOIC			3.9 mm	0.154 in

Catalog

High Precision Buffered Voltage Reference

Key Features

- Maximum Temperature Coefficient: 50 ppm/°C from -40°C to +125°C

- Initial Accuracy: 0.10%

- Operating Temperature Range: -40 to +125°C

- Line Regulation: 50 ppm/V maximum

- Load Regulation: 40 ppm/mA maximum

- Low Typical Operating Current: 140 µA

- Output Noise (.1 Hz to 10 kHz): 30 µVRMS

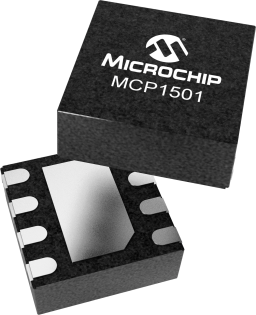

- Packages: 8L 2x2 WDFN, 6L SOT-23, 8L SOIC

- AEC-Q100 qualified, Grade 1 (Only SOT-23 package is automotive qualified)

•

• 10 Voltage variants available:* 1.024V

• * 1.250V

• * 1.800V

• * 2.048V

• * 2.500V

• * 3.000V

• * 3.300V

• * 4.096V

• * 4.500V

• * 5.000V

Description

The MCP1501 is a high-precision buffered voltage reference with an initial accuracy of 0.10% and is available in 10 voltage options. The MCP1501 is a low-drift bandgap-based reference and uses chopper-based amplifiers which significantly reduces the drift and provides high current output. The MCP1501 is available in a very small 2x2 WDFN package, as well as the SOT-23 and SOIC packages. SOT-23 package is AEC-Q100 automotive qualified.
