RGT50 Series

5µs Short-Circuit Tolerance, 650V 25A, FRD Built-in, TO-247GE, Field Stop Trench IGBT

Catalog

5µs Short-Circuit Tolerance, 650V 25A, FRD Built-in, TO-247GE, Field Stop Trench IGBT

Part	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Reverse Recovery Time (trr)	Mounting Type	IGBT Type	Gate Charge	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	Current - Collector Pulsed (Icm)	Test Condition	Vce(on) (Max) @ Vge, Ic

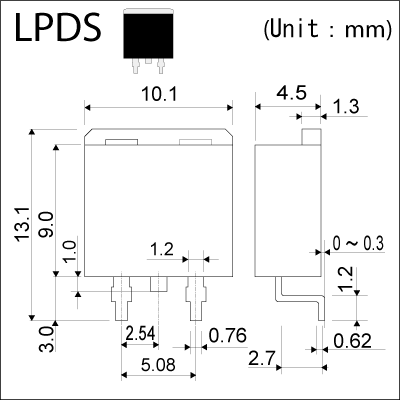

Rohm Semiconductor RGT50NS65DGTL	194 W	175 °C	-40 °C	LPDS	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	650 V	58 ns	Surface Mount	Trench Field Stop	49 nC	27 ns	88 ns	75 A	10 Ohm 15 V 25 A 400 V	2.1 V
Rohm Semiconductor RGT50NS65DGC9	194 W	175 °C	-40 °C	TO-262	I2PAK TO-262-3 Long Leads TO-262AA	650 V	58 ns	Through Hole	Trench Field Stop	49 nC	27 ns	88 ns	75 A	10 Ohm 15 V 25 A 400 V	2.1 V
Rohm Semiconductor RGT50TS65DGC13	174 W	175 °C	-40 °C	TO-247G	TO-247-3	650 V	58 ns	Through Hole	Trench Field Stop	49 nC	27 ns	88 ns	75 A	10 Ohm 15 V 25 A 400 V	2.1 V
Rohm Semiconductor RGT50NL65DGTL	194 W	175 °C	-40 °C	LPDS	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	650 V	58 ns	Surface Mount	Trench Field Stop	49 nC	27 ns	88 ns	75 A	10 Ohm 15 V 25 A 400 V	2.1 V

Catalog

5µs Short-Circuit Tolerance, 650V 25A, FRD Built-in, TO-247GE, Field Stop Trench IGBT

Description

RGT50NL65D is a Field Stop Trench IGBT with low collector - emitter saturation voltage, suitable for General Inverter, UPS, Power Conditioner, Welder.
