AD5343 Series

Catalog

+2.5V TO 5.5V, 230ΜA DUAL RAIL-TO-RAIL VOLTAGE OUTPUT 12-BIT DAC WITH BYTE-LOAD PARALLEL INTERFACE IN 20-LEAD TSSOP

Part	DNL (LSB) Tolerance	INL (LSB) Tolerance	Settling Time	Number of D/A Converters	Package Length	Package Name	Package Width	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Differential Output	Reference Type	Output Type	Architecture	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Data Interface	Number of Bits	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Supplied Contents	Contents	Utilized IC / Part	Number of DAC's	DAC Type
Analog Devices Inc./Maxim Integrated AD5343BRUZ-REEL7	0.2 LSB	2 LSB	10 µs	2 count	0.173 in	20-TSSOP	4.4 mm	5.5 V	2.5 V	No	External	Voltage - Buffered	String DAC	-40 °C	105 °C	Surface Mount	Parallel	12 bits	2.5 V	5.5 V

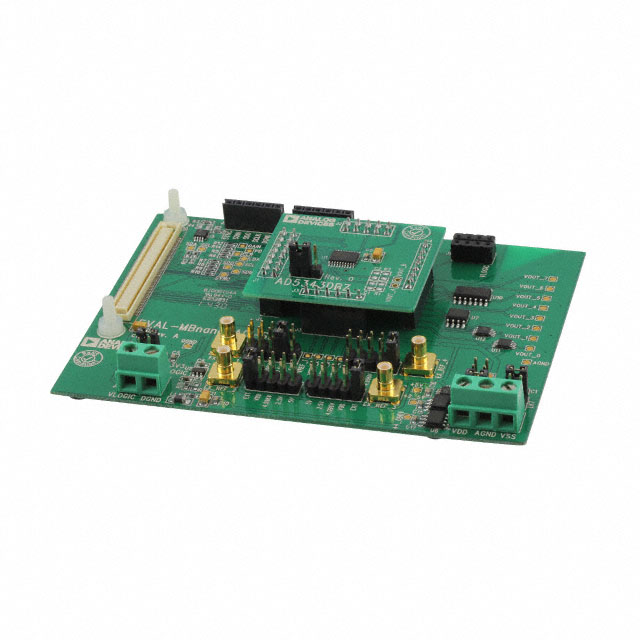

Analog Devices Inc./Maxim Integrated EVAL-AD5343DBZ			8 µs														Parallel	12 bits			Board(s)	Board	AD5343	2	Voltage
Analog Devices Inc./Maxim Integrated AD5343BRUZ-REEL	0.2 LSB	2 LSB	10 µs	2 count	0.173 in	20-TSSOP	4.4 mm	5.5 V	2.5 V	No	External	Voltage - Buffered	String DAC	-40 °C	105 °C	Surface Mount	Parallel	12 bits	2.5 V	5.5 V
Analog Devices Inc./Maxim Integrated AD5343BRUZ	0.2 LSB	2 LSB	10 µs	2 count	0.173 in	20-TSSOP	4.4 mm	5.5 V	2.5 V	No	External	Voltage - Buffered	String DAC	-40 °C	105 °C	Surface Mount	Parallel	12 bits	2.5 V	5.5 V
