30V Nch+Nch Middle Power MOSFET
Description
AI

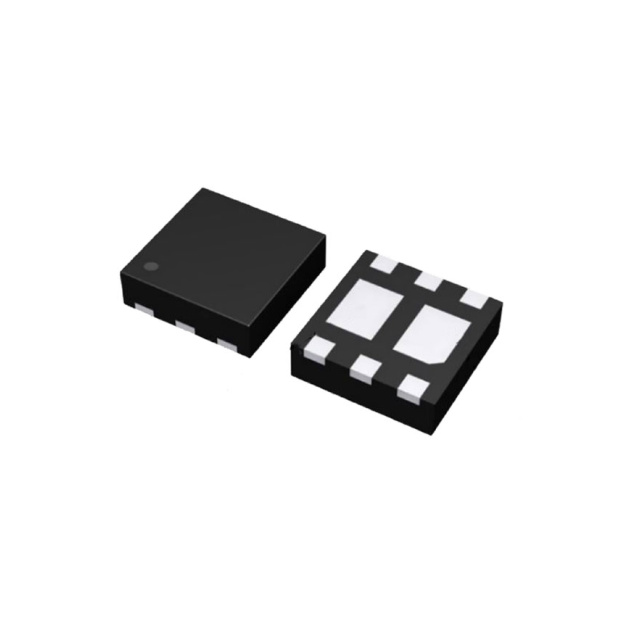

The Middle Power MOSFET UT6K3 is suitable for load switch and battery switch for mobile, DC/DC converter.
Beta
⌘K
30V Nch+Nch Middle Power MOSFET
30V Nch+Nch Middle Power MOSFET
| Part | Vgs(th) (Max) @ Id | Rds On (Max) @ Id, Vgs | Input Capacitance (Ciss) (Max) @ Vds | Configuration | Drain to Source Voltage (Vdss) | Power - Max [Max] | Current - Continuous Drain (Id) @ 25°C | Mounting Type | Technology | Package / Case | Gate Charge (Qg) (Max) @ Vgs | Operating Temperature | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | 1.5 V | 42 mOhm | 450 pF | 2 N-Channel (Dual) | 30 V | 2 W | 5.5 A | Surface Mount | MOSFET (Metal Oxide) | 8-PowerUDFN | 4 nC | 150 °C | HUML2020L8 | ||
 Rohm Semiconductor | 1.5 V | 42 mOhm | 450 pF | 2 N-Channel (Dual) | 30 V | 2 W | 5.5 A | Surface Mount | 6-PowerUDFN | 4 nC | HUML2020L8 | 150 °C | -55 °C |
