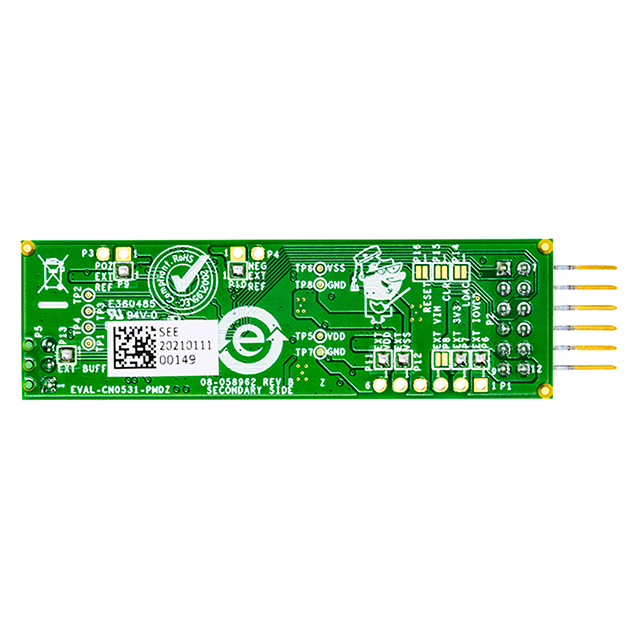

PMOD BOARD 20BIT DAC AD5791
| Part | Type | Platform | Utilized IC / Part | Interconnect System | Contents | Function | Number of DAC's | Data Interface | DAC Type | Number of Bits | Settling Time | Output Type | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Architecture | Supplier Device Package | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Differential Output | Operating Temperature [Min] | Operating Temperature [Max] | INL/DNL (LSB) | Reference Type | Mounting Type | Package / Case [y] | Package / Case | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | Data Acquisition | Pmod™ | AD5791 | Pmod | Board(s) | Digital to Analog Converter (DAC) | |||||||||||||||||||||
 Analog Devices | AD5791 | Board(s) | 1 | DSP MICROWIRE™ QSPI™ Serial SPI™ | Voltage | 20 | 1 µs | ||||||||||||||||||||
 Analog Devices | DSP SPI | 20 | 1 µs | Voltage - Unbuffered | -2.5 V 7.5 V | 16.5 V | R-2R | 20-TSSOP | 5.5 V | 2.7 V | -55 °C | 125 °C | ±1 | External | Surface Mount | 4.4 mm | 20-TSSOP | 0.173 in | |||||||||
Analog Devices | Serial | 20 | 1 µs | Voltage - Unbuffered | 2.7 V | 5.5 V | 20-TSSOP | 5.5 V | 2.7 V | -55 °C | 125 °C | ±1 (Max) | External | Surface Mount | 4.4 mm | 20-TSSOP | 0.173 in |
