STLD200N4F6AG Series

Catalog

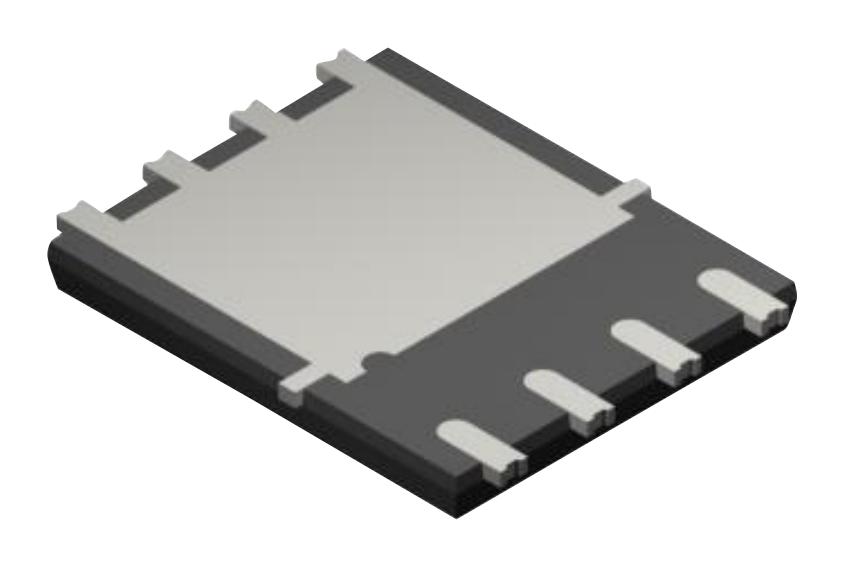

AUTOMOTIVE-GRADE N-CHANNEL 40 V, 1.27 MOHM TYP., 120 A STRIPFET F6 POWER MOSFET IN A POWERFLAT 5X6 DUAL SIDE COOLING PACKAGE

Part	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Qualification	Supplier Device Package	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Technology	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Drive Voltage (Max Rds On, Min Rds On) [Max]	FET Type
STMicroelectronics STLD200N4F6AG	20 V	120 A	AEC-Q101	PowerFlat™ (5x6) Dual Side	40 V	1.5 mOhm	Surface Mount	10700 pF	MOSFET (Metal Oxide)	8-PowerWDFN	175 °C	-55 °C	Automotive	158 W	172 nC	10 V	6.5 V	N-Channel
