48-6518 Series

Catalog

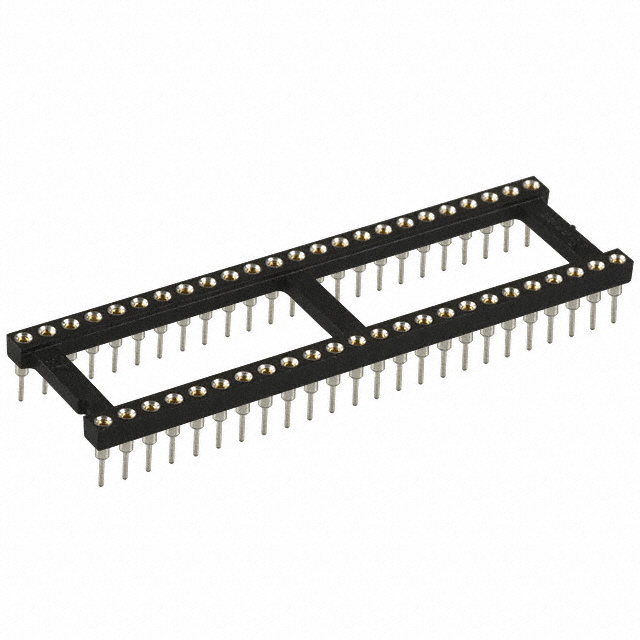

CONN IC DIP SOCKET 48POS GOLD

Part	Termination Post Length	Termination Post Length	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Contact Finish - Mating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Features	Type [custom]	Type [custom]	Type	Pitch - Mating	Pitch - Mating	Contact Material - Post [custom]	Housing Material	Contact Material - Mating	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [x]
Aries Electronics 48-6518-10	0.125 in	3.18 mm	UL94 V-0	3 A	Through Hole	Gold	Solder	200 µin	5.08 µm	0.25 µm	10 µin	Tin	Open Frame	15.24 mm	0.6 in	DIP	0.1 "	2.54 mm	Brass	Polyamide (PA46) Nylon 4/6 Glass Filled	Beryllium Copper	0.1 in	2.54 mm	2	48	24
Aries Electronics 48-6518-10M	0.125 in	3.18 mm	UL94 V-0	3 A	Through Hole	Gold	Solder	200 µin	5.08 µm	0.25 µm	10 µin	Tin	Open Frame	15.24 mm	0.6 in	DIP	0.1 "	2.54 mm	Brass	Polyamide (PA46) Nylon 4/6 Glass Filled	Beryllium Copper	0.1 in	2.54 mm	2	48	24
Aries Electronics 48-6518-01	0.125 in	3.18 mm	UL94 V-0	3 A	Through Hole	Gold	Solder	10 Áin	0.25 çm	0.25 µm	10 µin	Gold	Open Frame	15.24 mm	0.6 in	DIP	0.1 "	2.54 mm	Brass	Polyamide (PA46) Nylon 4/6 Glass Filled	Beryllium Copper	0.1 in	2.54 mm	2	48	24
Aries Electronics 48-6518-10H	0.125 in	3.18 mm	UL94 V-0	3 A	Through Hole	Gold	Solder	200 µin	5.08 µm	0.25 µm	10 µin	Tin	Open Frame	15.24 mm	0.6 in	DIP	0.1 "	2.54 mm	Brass	Polyamide (PA46) Nylon 4/6 Glass Filled	Beryllium Copper	0.1 in	2.54 mm	2	48	24
Aries Electronics 48-6518-10T	0.125 in	3.18 mm	UL94 V-0	3 A	Through Hole	Gold	Solder	200 µin	5.08 µm	0.25 µm	10 µin	Tin	Open Frame	15.24 mm	0.6 in	DIP	0.1 "	2.54 mm	Brass	Polyamide (PA46) Nylon 4/6 Glass Filled	Beryllium Copper	0.1 in	2.54 mm	2	48	24
Aries Electronics 48-6518-11	0.125 in	3.18 mm	UL94 V-0	3 A	Through Hole	Gold	Solder	10 Áin	0.25 çm	0.25 µm	10 µin	Gold	Open Frame	15.24 mm	0.6 in	DIP	0.1 "	2.54 mm	Brass	Polyamide (PA46) Nylon 4/6 Glass Filled	Beryllium Copper	0.1 in	2.54 mm	2	48	24
