SAM9X70 Series

SAM9X70

Catalog

SAM9X70

Part	Supplier Device Package	Voltage - I/O	Speed	Operating Temperature [Max]	Operating Temperature [Min]	Number of Cores/Bus Width	Security Features	Mounting Type	Ethernet	Core Processor	Additional Interfaces	Graphics Acceleration	USB	Package / Case	RAM Controllers

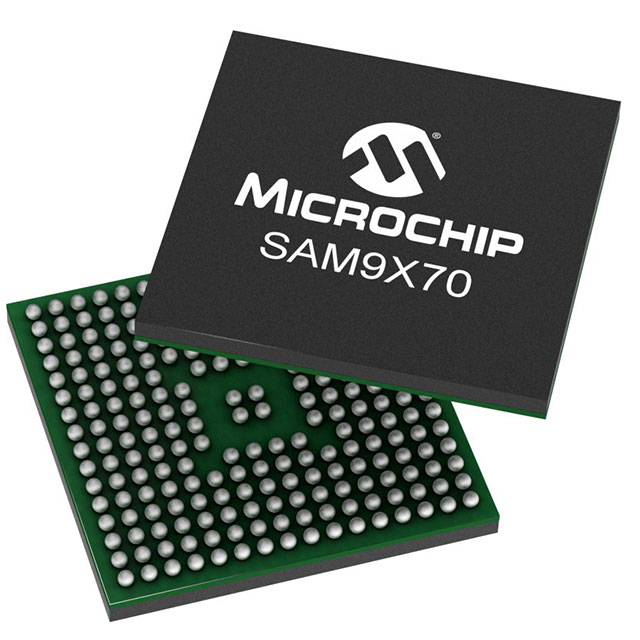

Microchip Technology SAM9X70T-I/4PB	240-TFBGA (11x11)	1.8 V 2.5 V 3.3 V	800 MHz	85 °C	-40 °C	1 Core 32 Bit	AES Boot Security Cryptography DES SHA TRNG	Surface Mount	10 Mbps 100 Mbps 1000 Mbps	ARM926EJ-S	EBI/EMI I2C MMC/SD/SDIO QSPI SPI UART/USART USB		USB (3)	240-LFBGA	DDR2 DDR3 DDR3L SDRAM
Microchip Technology SAM9X70-I/4PB	240-TFBGA (11x11)	1.8 V 2.5 V 3.3 V	800 MHz	85 °C	-40 °C	1 Core 32 Bit	AES Boot Security Cryptography DES SHA TRNG	Surface Mount	10 Mbps 100 Mbps 1000 Mbps	ARM926EJ-S	EBI/EMI I2C MMC/SD/SDIO QSPI SPI UART/USART USB		USB (3)	240-LFBGA	DDR2 DDR3 DDR3L SDRAM

Catalog

SAM9X70

Key Features

• Low System Cost and High Value Integration:* 800MHz ARM926EJ-S Core, 266MHz System/Memory Bus

• * 32 kB Data Cache and 32kB Instruction Cache

•

• Memories:* 16-bit DDR databus

• * 64 kB internal SRAM

•

• Enhanced User Interface capability:* Built-in Class D Amplifier

•

• Large number of connectivity options:* Two High-speed USB Host + One High-speed Host or Device

• * Hardware Encryption Engine (TDES, AES and SHA) and True Random Generator (TRNG)

• * Secure Boot with on-chip Secure Key Storage (OTP)

• * TFBGA240, 11X11, 0.8 mm pitch

• * Power/GND balls placed and distributed for optimal decoupling

• * Fractional System PLL, I/Os slew rate and drive control, DDR I/Os calibration for Low EMI

•

• Camera Support* Parallel Port

•

• Single 10/100/1G Ethernet

•

• State-of-the-Art Security:* Hardware Encryption Engine (TDES, AES and SHA), True Random Generator (TRNG), PUF

• * Secure Boot with on-chip Secure Key Storage (OTP)

• * Physical protection against tamper, 8 tamper detection pins

• * On the Fly scrambling / unscrambling for memories

•

• Rich Development Ecosystem:* Free mainline Linux® Distribution

• * MPLAB® X Integrated Development Environment and MPLAB® Harmony v3

• * Multiple Third-party Software and Hardware Solutions

• * Optimized for Easy PCB Design and Low EMI

• * TFBGA240, 11x11, 0.65 mm pitch

• * Power/GND balls placed and distributed for optimal decoupling

• * Fractional System PLL, I/Os slew rate and drive control, DDR I/Os calibration for Low EMI

Description

The SAM9X70 is a high-performance, ultra-low-power ARM926EJ-S CPU-based embedded microprocessor (MPU) running up to 800 MHz. The SAM9X70 supports various NVM interfaces, including NAND Flash, Quad SPI and eMMC Flash. This device offers 10/100/1000 Mbps Ethernet interface with TSN connectivity support and State-of-the-Art security functions such as Secure Boot capability with on-chip secure key storage (OTP), high-performance crypto accelerators (SHA, AES and TDES), tamper pins as well as PUF Microchip offers for different supply configurations, fully tested power management solutions respecting the SAM9X70 power sequencing specifications that are referenced in the product specification.
