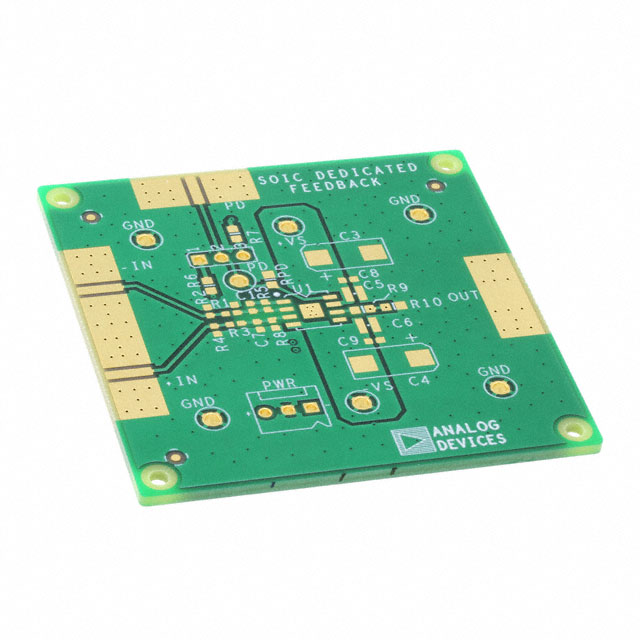

3 nV/√Hz Ultralow Distortion, High Speed Op Amp
Key Features
• Ultralow distortion
• SFDR−101 dBc at 5 MHz−90 dBc at 20 MHz−63 dBc at 70 MHz
• −101 dBc at 5 MHz
• −90 dBc at 20 MHz
• −63 dBc at 70 MHz
• Third-order intercept43 dBm at 10 MHz
• 43 dBm at 10 MHz
• Low noise3 nV/√Hz3 pA/√Hz
• 3 nV/√Hz
• 3 pA/√Hz
• High speed1 GHz, −3 dB bandwidth (G = +1)1350 V/µs slew rate7.5 ns settling time to 0.1%
• 1 GHz, −3 dB bandwidth (G = +1)
• 1350 V/µs slew rate
• 7.5 ns settling time to 0.1%
• Standard and low distortion pinout
• Supply current: 15 mA
• Offset voltage: 1.0 mV max
• Wide supply voltage range: 3.3 V to 12 V
Description
