GCMX040 Series
Manufacturer: SemiQ
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

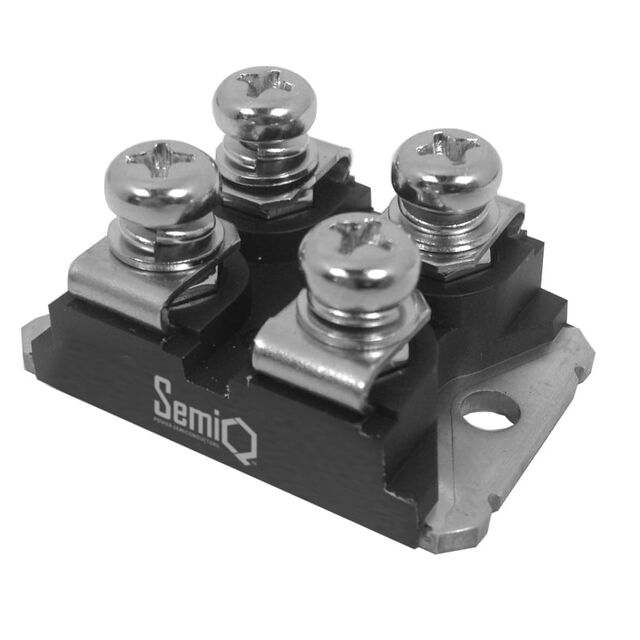

SIC 1200V 40M MOSFET SOT-227
| Part | Drain to Source Voltage (Vdss) | Vgs (Max) Negative | Vgs (Max) Positive | Power Dissipation (Max) | Mounting Type | Rds On (Max) | Vgs(th) (Max) | Drive Voltage (Max Rds On, Min Rds On) | Input Capacitance (Ciss) (Max) | Current - Continuous Drain (Id) (Tc) | Operating Temperature (Min) | Operating Temperature (Max) | Package Name | FET Type | Package / Case | Technology | Gate Charge (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SemiQ | 1200 V | -10 V | 25 V | 242 W | Chassis Mount | 52 mOhm | 4 V | 20 V | 3185 pF | 57 A | -55 °C | 175 °C | SOT-227 | N-Channel | miniBLOC SOT-227-4 | SiC (Silicon Carbide Junction Transistor) SiCFET (Silicon Carbide) | 121 nC |
