40-650 Series

Catalog

IC & COMPONENT SOCKETS OPEN FRAME CAPACITOR WIRE WRAP 40 PINS

Part	Termination Post Length	Termination Post Length	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid)	Contact Finish - Mating	Contact Material - Post [custom]	Type [custom]	Type [custom]	Type	Features	Contact Finish - Post	Mounting Type	For Use With/Related Products	Number of Positions	Accessory Type	Contact Material - Post
Aries Electronics 40-6508-211	0.5 in	12.7 mm	3 A	UL94 V-0	-55 C	125 °C	Polyamide (PA46) Nylon 4/6 Glass Filled	Beryllium Copper	10 Áin	0.25 çm	Wire Wrap	0.1 "	2.54 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	40	Gold	Brass	15.24 mm	0.6 in	DIP	Open Frame	Gold	Through Hole

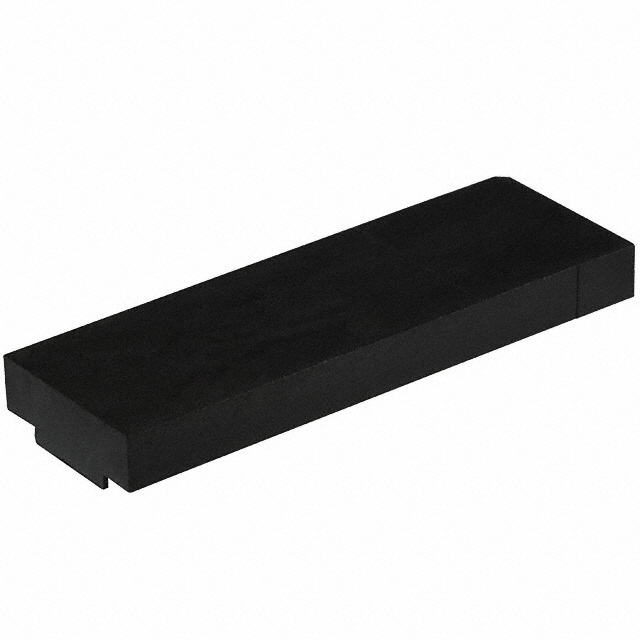

Aries Electronics 40-650-10																											0600 Series Header	40	Cap (Cover)
Aries Electronics 40-6508-301	0.36 in	9.14 mm	3 A	UL94 V-0	-55 C	105 ░C	Polyamide (PA46) Nylon 4/6 Glass Filled	Beryllium Copper	200 µin	5.08 µm	Wire Wrap	0.1 "	2.54 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	40	Gold	Brass	15.24 mm	0.6 in	DIP	Open Frame	Tin	Through Hole
Aries Electronics 40-6508-201	0.36 in	9.14 mm	3 A	UL94 V-0	-55 C	105 ░C	Polyamide (PA46) Nylon 4/6 Glass Filled	Beryllium Copper	200 µin	5.08 µm	Wire Wrap	0.1 "	2.54 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	40	Gold	Brass	15.24 mm	0.6 in	DIP	Open Frame	Tin	Through Hole
Aries Electronics 40-6508-202	0.36 in	9.14 mm	3 A	UL94 V-0	-55 C	105 ░C	Polyamide (PA46) Nylon 4/6 Glass Filled	Beryllium Copper	200 µin	5.08 µm	Wire Wrap	0.1 "	2.54 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	40	Gold	Brass	15.24 mm	0.6 in	DIP	Open Frame	Tin	Through Hole
Aries Electronics 40-6503-30	0.5 in	12.7 mm	3 A	UL94 V-0	-55 C	105 ░C	Polyamide (PA46) Nylon 4/6 Glass Filled	Beryllium Copper	200 µin	5.08 µm	Wire Wrap	0.1 "	2.54 mm	0.25 µm	10 µin	0.1 in	2.54 mm	40	Gold		15.24 mm	0.6 in	DIP	Closed Frame	Tin	Through Hole				Phosphor Bronze
Aries Electronics 40-6508-21	0.5 in	12.7 mm	3 A	UL94 V-0	-55 C	125 °C	Polyamide (PA46) Nylon 4/6 Glass Filled	Beryllium Copper	10 Áin	0.25 çm	Wire Wrap	0.1 "	2.54 mm	0.76 Ám	30 Áin	0.1 in	2.54 mm	40	Gold	Brass	15.24 mm	0.6 in	DIP	Open Frame	Gold	Through Hole
Aries Electronics 40-6501-20	0.41 in	10.41 mm	1.5 A	UL94 V-0	-55 C	105 ░C	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	200 µin	5.08 µm	Wire Wrap	0.1 "	2.54 mm	5.08 µm	200 µin	0.1 in	2.54 mm	40			15.24 mm	0.6 in	DIP	Closed Frame	Tin	Through Hole				Phosphor Bronze
Aries Electronics 40-6501-30	0.69 in	17.52 mm	1.5 A	UL94 V-0	-55 C	125 °C	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	200 µin	5.08 µm	Wire Wrap	0.1 "	2.54 mm	5.08 µm	200 µin	0.1 in	2.54 mm	40			15.24 mm	0.6 in	DIP	Closed Frame	Tin	Through Hole				Phosphor Bronze
Aries Electronics 40-6501-31	0.69 in	17.52 mm	1.5 A	UL94 V-0	-55 C	125 °C	Polyamide (PA46) Nylon 4/6 Glass Filled	Phosphor Bronze	10 Áin	0.25 çm	Wire Wrap	0.1 "	2.54 mm	0.25 µm	10 µin	0.1 in	2.54 mm	40	Gold		15.24 mm	0.6 in	DIP	Closed Frame	Gold	Through Hole				Phosphor Bronze
