BSC014 Series

Manufacturer: INFINEON

Catalog

MOSFET 60V TDSON-8-7

Part	Supplier Device Package	Technology	Mounting Type	Drain to Source Voltage (Vdss)	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Vgs (Max)	Vgs(th) (Max) @ Id	FET Type	Power Dissipation (Max)	Power Dissipation (Max)	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]
INFINEON BSC014N06LS5ATMA1	PG-TDSON-8-7	MOSFET (Metal Oxide)	Surface Mount	60 V	8-PowerTDFN
INFINEON BSC014NE2LSIATMA1	PG-TDSON-8-7	MOSFET (Metal Oxide)	Surface Mount	25 V	8-PowerTDFN	2700 pF	1.4 mOhm	20 V	2 V	N-Channel	2.5 W	74 W	33 A 100 A	150 °C	-55 °C	4.5 V 10 V	39 nC
INFINEON BSC014N04LSATMA1	SuperSO8	MOSFET (Metal Oxide)	Surface Mount	40 V	8-PowerTDFN	4300 pF	1.4 mOhm	20 V	2 V	N-Channel			32 A 100 A	175 °C	-55 °C	4.5 V 10 V	61 nC	2.5 W 96 W
INFINEON BSC014N04LSIATMA1	PG-TDSON-8 FL	MOSFET (Metal Oxide)	Surface Mount	40 V	8-PowerTDFN		1.45 mOhm	20 V	2 V	N-Channel				150 °C	-55 °C	4.5 V 10 V		2.5 W 96 W	4000 pF	55 nC
INFINEON BSC014N06NSSCATMA1	PG-WSON-8-2	MOSFET (Metal Oxide)	Surface Mount	60 V	8-PowerWDFN	8125 pF	1.4 mOhm	20 V	3.3 V	N-Channel			261 A	175 °C	-55 °C	6 V 10 V	104 nC	3 W 188 W

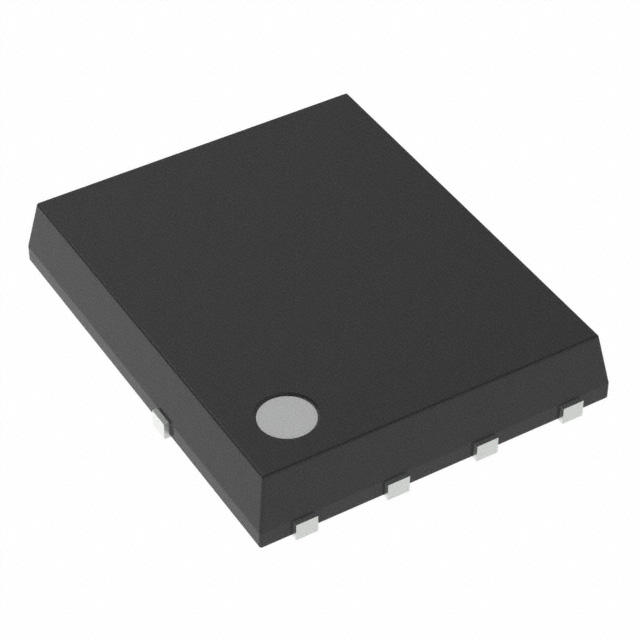

INFINEON BSC014N06NSATMA1	PG-TDSON-8-17	MOSFET (Metal Oxide)	Surface Mount	60 V	8-PowerTDFN		1.45 mOhm	20 V	2.8 V	N-Channel			30 A 100 A	175 °C	-55 °C	6 V 10 V	89 nC	2.5 W 156 W	6500 pF
