217-36 Series

Catalog

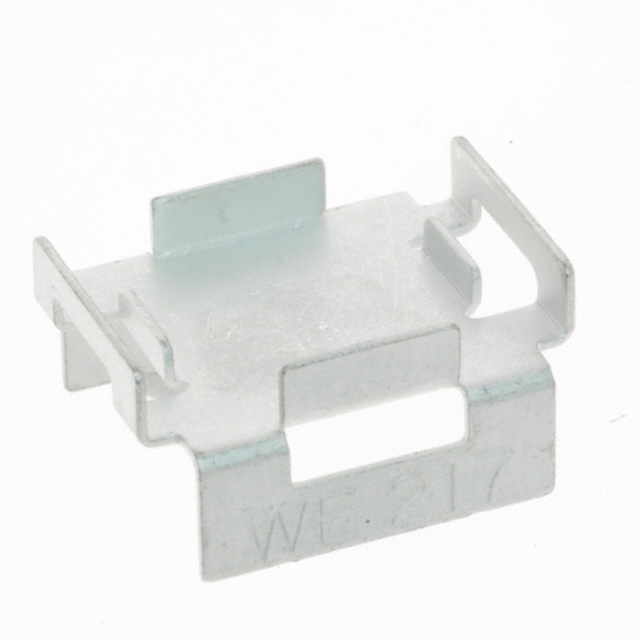

HEAT SINK, SQUARE, PCB, SURFACE MOUNT, 55 °C/W, D2PAK, SOL-20, SOT-223, TO-220, TO-263, 15.2 MM

Part	Shape [custom]	Shape [custom]	Fin Height [z]	Fin Height [z]	Material Finish	Thermal Resistance @ Natural	Material	Attachment Method	Type	Width [y]	Width [y]	Package Cooled	Power Dissipation @ Temperature Rise	Thermal Resistance @ Forced Air Flow	Length	Length
Wakefield Thermal Solutions 217-36CTRE6	Rectangular	Fins	9.14 mm	0.36 in	Tin	55 °C/W	Copper	SMD Pad	Top Mount	0.6 in	15.24 mm	D²PAK (TO-263) SOL-20 SOT-223 TO-220	1 W	16 °C/W	0.74 in	18.8 mm
Wakefield Thermal Solutions 217-36CTE6	Rectangular	Fins	9.14 mm	0.36 in	Tin	55 °C/W	Copper	SMD Pad	Top Mount	0.6 in	15.24 mm	D²PAK (TO-263) SOL-20 SOT-223 TO-220	1 W	16 °C/W	0.74 in	18.8 mm
Wakefield Thermal Solutions 217-36CTE6	Rectangular	Fins	9.14 mm	0.36 in	Tin	55 °C/W	Copper	SMD Pad	Top Mount	0.6 in	15.24 mm	D²PAK (TO-263) SOL-20 SOT-223 TO-220	1 W	16 °C/W	0.74 in	18.8 mm
Wakefield Thermal Solutions 217-36CTRE6	Rectangular	Fins	9.14 mm	0.36 in	Tin	55 °C/W	Copper	SMD Pad	Top Mount	0.6 in	15.24 mm	D²PAK (TO-263) SOL-20 SOT-223 TO-220	1 W	16 °C/W	0.74 in	18.8 mm
