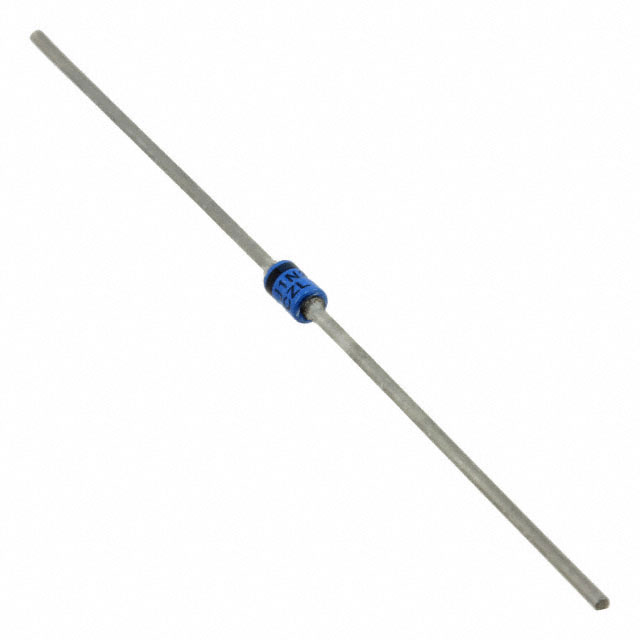

1N3613 Series
Manufacturer: Microchip Technology
Beta
⌘K
STD RECTIFIER A-BODY ROHS COMPLIANT: YES
| Part | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Voltage - Forward (Vf) (Max) | Package Name | Package / Case | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Speed - Recovery Time | Voltage - DC Reverse (Vr) (Max) | Mounting Type | Current - Reverse Leakage | Current - Average Rectified (Io) | Technology | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 175 °C | -65 °C | 1.1 V | A Axial | A Axial | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | 600 V | Through Hole | 1 µA | 1 A | Standard | ||
 Microchip Technology | 175 °C | -65 °C | 1.1 V | A Axial | A Axial | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | 600 V | Through Hole | 100 µA | 1 A | Standard | 228 MIL-PRF-19500 | Military |
