Super Fast Recovery Diode (AEC-Q101 Qualified)
Key Features
• Cathode common dual type, Low switching loss, Low forward voltage
Description
AI
RF601BM2DFH is the silicon epitaxial planar type Fast Recovery Diode.
Beta
⌘K
Super Fast Recovery Diode (AEC-Q101 Qualified)
Super Fast Recovery Diode (AEC-Q101 Qualified)
| Part | Supplier Device Package | Diode Configuration | Voltage - DC Reverse (Vr) (Max) [Max] | Voltage - Forward (Vf) (Max) @ If | Reverse Recovery Time (trr) | Technology | Mounting Type | Operating Temperature - Junction | Current - Reverse Leakage @ Vr | Current - Average Rectified (Io) (per Diode) | Speed | Package / Case | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

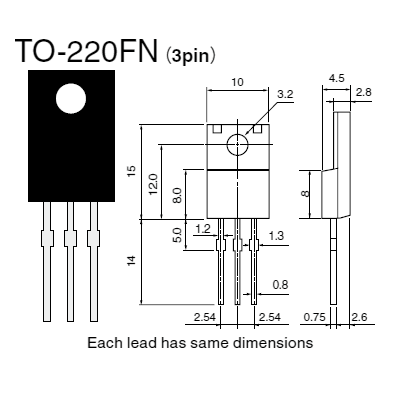

 Rohm Semiconductor | TO-220FN | 1 Pair Common Cathode | 200 V | 930 mV | 25 ns | Standard | Through Hole | 150 ¯C | 10 µA | 6 A | 200 mA 500 ns | TO-220-3 Full Pack | ||
 Rohm Semiconductor | TO-252 | 1 Pair Common Cathode | 200 V | 930 mV | 25 ns | Standard | Surface Mount | 150 °C | 10 µA | 6 A | 200 mA 500 ns | DPAK (2 Leads + Tab) SC-63 TO-252-3 | Automotive | AEC-Q101 |
 Rohm Semiconductor | TO-252GE | 1 Pair Common Cathode | 200 V | 930 mV | 25 ns | Standard | Surface Mount | 150 ¯C | 10 µA | 3 A | 200 mA 500 ns | DPAK (2 Leads + Tab) SC-63 TO-252-3 |
