TPS61170 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC REG MULT CONFG ADJ 960MA 6SON
| Part | Mounting Type | Frequency - Switching | Output Type | Output Configuration | Voltage - Input (Min) [Min] | Function | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Topology | Number of Outputs | Voltage - Output (Max) | Supplier Device Package | Current - Output | Synchronous Rectifier | Supplied Contents | Outputs and Type | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Utilized IC / Part | Voltage - Output | Main Purpose | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 1.2 MHz | Adjustable | Positive | 3 V | Step-Up Step-Up/Step-Down | 85 °C | -40 °C | 18 V | Boost Buck-Boost Flyback SEPIC | 1 | 38 V | 6-WSON (2x2) | 960 mA | |||||||||||

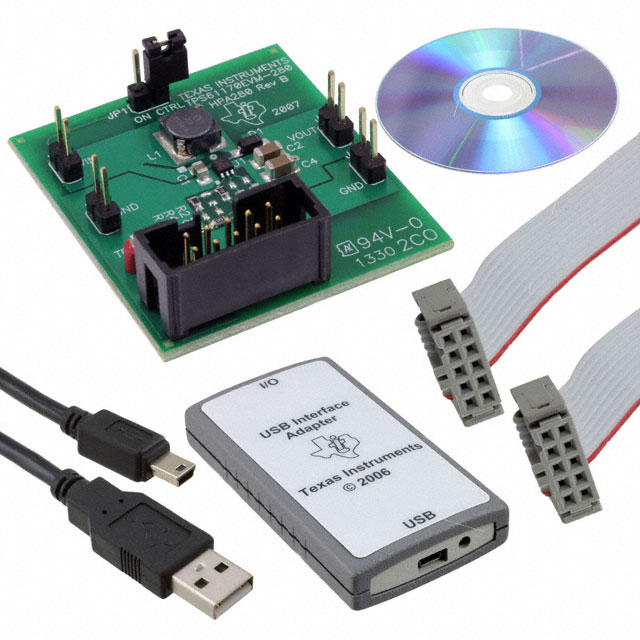

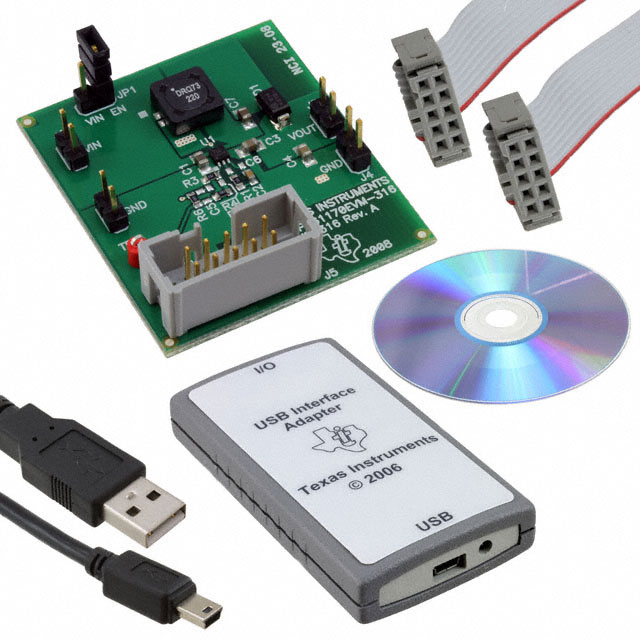

 Texas Instruments | 1.2 MHz | 550 mA | Board(s) | Non-Isolated | 1 | 9 VDC | 18 V | Boost | TPS61170 | 24 V | DC/DC Step Up | Fully Populated |
