MDF7 Series

Board to Board & Mezzanine Connectors

Manufacturer: Hirose Electric Co Ltd

Catalog

Board to Board & Mezzanine Connectors

Catalog

Board to Board & Mezzanine Connectors

...

Part	Contact Shape	Current Rating (Amps)	Shrouding	Contact Material	Voltage Rating	Mounting Type	Number of Positions	Fastening Type	Contact Type	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Insulation Material	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insulation Color	Termination	Connector Type	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Number of Positions [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Overall Contact Length [x]	Overall Contact Length [x]	Style	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]

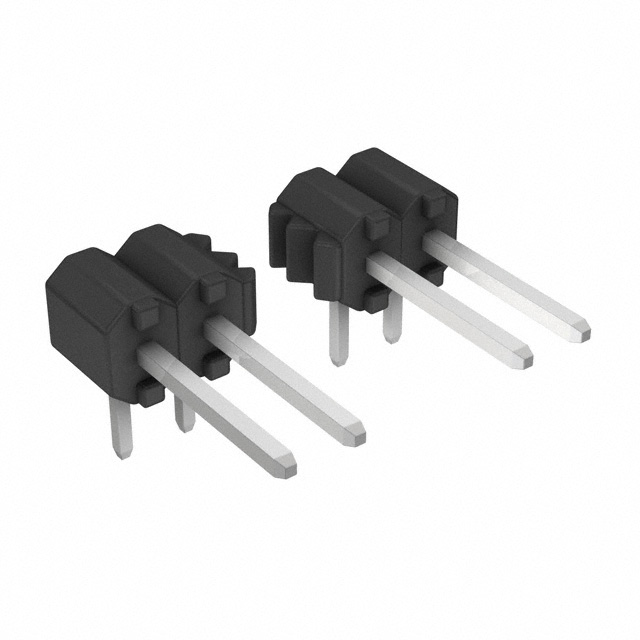

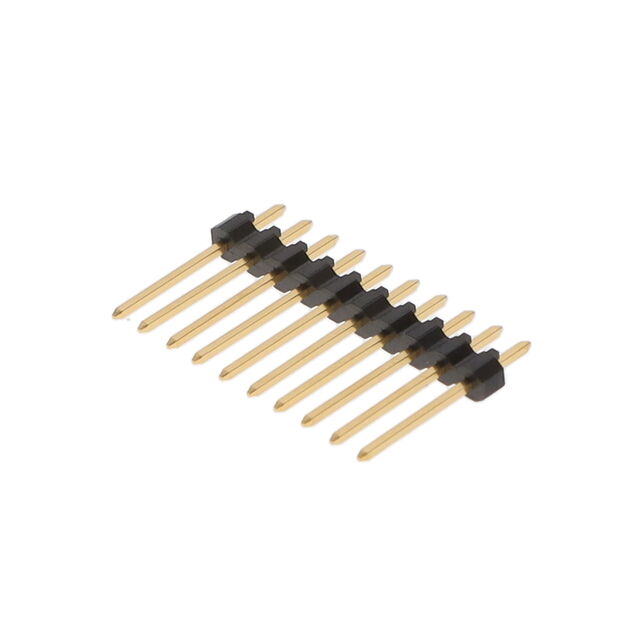

Hirose Electric Co Ltd MDF7-10P-2.54DS(55)	Square	3 A	Unshrouded	Brass	250 V	Right Angle Through Hole	10	Push-Pull	Male Pin	0.13 "	3.3 mm	85 °C	-35 °C	0.1 "	2.54 mm	4 mm	0.157 in	All	1	0.292 in	7.42 mm	Tin	Polybutylene Terephthalate (PBT)	39.4 µin	1 µm	Black	Solder	Header	UL94 V-0
Hirose Electric Co Ltd MDF7-15S-2.54DSA(56)	Square	3 A		Phosphor Bronze	250 VAC	Through Hole	15	Push-Pull	Female Socket	0.118 in	3 mm	85 °C	-35 °C	0.1 "	2.54 mm			All	1			Tin	Nylon Polyamide (PA)			Black	Solder	Receptacle Bottom Entry	UL94 V-0	39.4 çin	1 çm	Gold	0.197 "	5 mm	8 µin	0.203 µm
Hirose Electric Co Ltd MDF7-34D-2.54DSA(38)	Square	3 A		Phosphor Bronze	250 VAC	Through Hole		Push-Pull	Female Socket	0.118 in	3 mm	85 °C	-35 °C	0.1 "	2.54 mm								Nylon Polyamide (PA)			Black	Solder	Receptacle Bottom Entry	UL94 V-0				0.197 "	5 mm	78.7 µin	2 µm	2	34	0.1 in	2.54 mm	26
Hirose Electric Co Ltd MDF7-5S-2.54DSA(95)	Square	3 A		Phosphor Bronze	250 VAC	Through Hole	5	Push-Pull	Female Socket	0.118 in	3 mm	85 °C	-35 °C	0.1 "	2.54 mm			All	1			Tin	Nylon Polyamide (PA)			Black	Solder	Receptacle Bottom Entry	UL94 V-0				0.197 "	5 mm
Hirose Electric Co Ltd MDF7-14DP-2.54DSA	Square	3 A	Unshrouded	Brass	250 V	Through Hole	14	Push-Pull	Male Pin	0.118 in	3 mm	85 °C	-35 °C	0.1 "	2.54 mm			All		0.394 in	10 mm		Polybutylene Terephthalate (PBT)			Black	Solder	Header	UL94 V-0			Gold	0.1 in	2.54 mm	8 µin	0.203 µm	2		0.1 in	2.54 mm		15.54 mm	0.612 in
Hirose Electric Co Ltd MDF7-25P-2.54DS(55)	Square	3 A	Unshrouded	Brass	250 V	Right Angle Through Hole	25	Push-Pull	Male Pin	0.13 "	3.3 mm	85 °C	-35 °C	0.1 "	2.54 mm	4 mm	0.157 in	All	1	0.292 in	7.42 mm	Tin	Polybutylene Terephthalate (PBT)	39.4 µin	1 µm	Black	Solder	Header	UL94 V-0
Hirose Electric Co Ltd MDF7-14S-2.54DSA(95)	Square	3 A		Phosphor Bronze	250 VAC	Through Hole	14	Push-Pull	Female Socket	0.118 in	3 mm	85 °C	-35 °C	0.1 "	2.54 mm			All	1			Tin	Nylon Polyamide (PA)			Black	Solder	Receptacle Bottom Entry	UL94 V-0				0.197 "	5 mm
Hirose Electric Co Ltd MDF7-30DP-2.54DSA(96)	Square	3 A	Unshrouded	Brass	250 VAC	Through Hole	30	Push-Pull	Male Pin	0.118 in	3 mm	85 °C	-35 °C	0.1 "	2.54 mm			All		0.394 in	10 mm		Polybutylene Terephthalate (PBT)			Black	Solder	Header	UL94 V-0			Gold	0.1 in	2.54 mm			2		0.1 in	2.54 mm		15.54 mm	0.612 in	Board to Cable/Wire
Hirose Electric Co Ltd MDF7-14D-2.54DSA(55)	Square	3 A		Phosphor Bronze	250 VAC	Through Hole	14	Push-Pull	Female Socket	0.118 in	3 mm	85 °C	-35 °C	0.1 "	2.54 mm			All				Tin	Nylon Polyamide (PA)			Black	Solder	Receptacle Bottom Entry	UL94 V-0				0.197 "	5 mm	78.7 µin	2 µm	2		0.1 in	2.54 mm					78.7 µin	2 µm
Hirose Electric Co Ltd MDF7-22P-2.54DS(95)	Square	3 A	Unshrouded	Brass	250 VAC	Right Angle Through Hole	22	Push-Pull	Male Pin	0.13 "	3.3 mm	85 °C	-35 °C	0.1 "	2.54 mm	4 mm	0.157 in	All	1	0.293 in	7.45 mm	Tin	Polybutylene Terephthalate (PBT)			Black	Solder	Header	UL94 V-0															Board to Cable/Wire
