GP3D020 Series
Manufacturer: SemiQ
Beta
⌘K
DIODE ARR SIC 1200V 10A TO247-3
| Part | Current - Reverse Leakage @ Vr | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Voltage - Forward (Vf) (Max) @ If [Max] | Current - Average Rectified (Io) (per Diode) | Supplier Device Package | Technology | Mounting Type | Speed | Package / Case | Voltage - DC Reverse (Vr) (Max) [Max] | Diode Configuration | Reverse Recovery Time (trr) | Current - Average Rectified (Io) | Capacitance @ Vr, F |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SemiQ | 20 ÁA 20 µA | 175 ░C | -55 °C | 1.65 V | 10 A | TO-247-3 | SiC (Silicon Carbide) Schottky | Through Hole | 500 mA | TO-247-3 | 1.2 kV | 1 Pair Common Cathode | 0 ns | ||

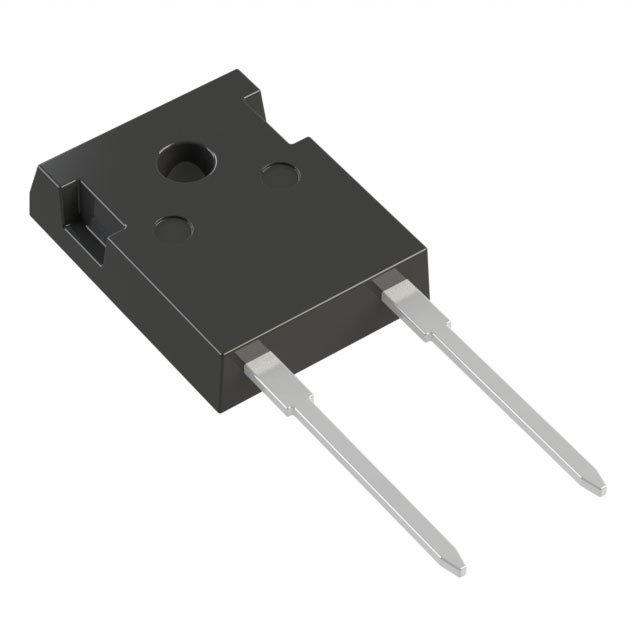

 SemiQ | 80 µA | 175 ░C | -55 °C | 1.65 V | TO-247-2 | SiC (Silicon Carbide) Schottky | Through Hole | 500 mA | TO-247-2 | 1700 V | 0 ns | 67 A | 1403 pF | ||
 SemiQ | 40 µA | 175 ░C | -55 °C | 1.65 V | TO-247-2 | SiC (Silicon Carbide) Schottky | Through Hole | 500 mA | TO-247-2 | 1.2 kV | 0 ns | 1179 pF |
