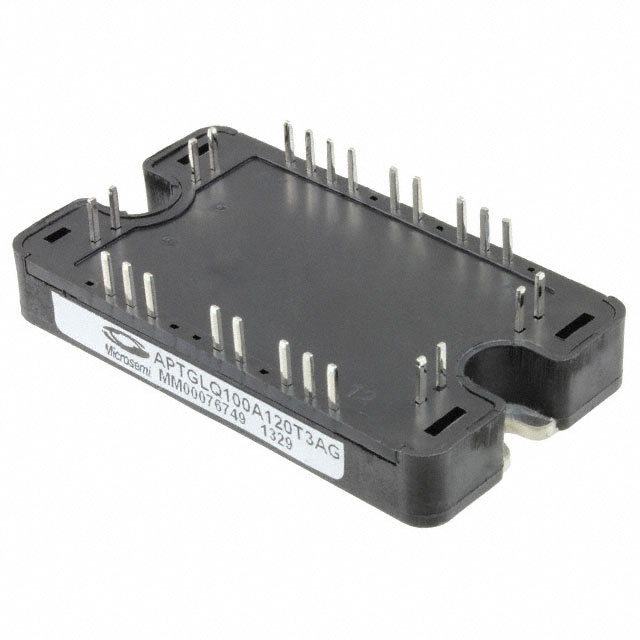

APTGLQ100A120T3AG-Module Series

1200V/Boost chopper/IGBT modules

Catalog

1200V/Boost chopper/IGBT modules

Part	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Configuration	Input	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Current - Collector Cutoff (Max) [Max]	Input Capacitance (Cies) @ Vce	IGBT Type	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]
Microchip Technology APTGLQ100H65T3G	2.3 V	SP3F	Full Bridge	Standard	-40 C	175 °C	Module	Chassis Mount	50 µA	6.15 nF	Trench Field Stop	350 W	650 V
Microchip Technology APTGLQ100A120T3AG	2.4 V	SP3	Half Bridge	Standard	-40 C	175 °C	SP3	Through Hole	50 µA	6.15 nF	Trench Field Stop	650 W		185 A	1200 V
Microchip Technology APTGLQ100DA120T1G	2.42 V	SP1	Boost Chopper	Standard	-40 C	175 °C	Module	Chassis Mount	50 µA	6.15 nF	Trench Field Stop	520 W			1200 V
Microchip Technology APTGLQ100A120TG	2.42 V	SP4	Half Bridge	Standard	-40 C	175 °C	Module	Chassis Mount	50 µA	6.15 nF	Trench Field Stop	520 W			1200 V

Catalog

1200V/Boost chopper/IGBT modules

Key Features

- Configuration: Boost chopper

- VCES (V): 1200

- VCESat (V): 2.05

- Current (A) Tc=80C: 100

- Silicon type: TRENCH 4 FAST

- Package: SP1F

Description

* IGBT 3 fast * Low voltage drop * Low leakage current * Low switching losses * Kelvin emitter for easy drive * Low stray inductance * Stable temperature behavior * Very rugged * Direct mounting to heatsink (isolated package) * Low junction to case thermal resistance * Internal thermistor for temperature monitoring (optional) * Easy paralleling due to positive TC of VCEsat * Low profile * RoHS Compliant
