OptiMOS 5 Series

Manufacturer: INFINEON

Catalog

OPTIMOS™ 5 N-CHANNEL POWER MOSFET 80 V ; D2PAK TO-263 PACKAGE; 4.9 MOHM;

Part	FET Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs [Max]	Mounting Type	Technology	Vgs (Max)	Drain to Source Voltage (Vdss)	Power Dissipation (Max)	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Grade	Supplier Device Package	Qualification	Configuration	Power - Max [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]
INFINEON IPB049N08N5ATMA1	N-Channel	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	175 °C	-55 °C	6 V 10 V	53 nC	3770 pF	3.8 V	4.9 mOhm	Surface Mount	MOSFET (Metal Oxide)	20 V	80 V	125 W
INFINEON BSZ070N08LS5ATMA1	N-Channel	8-PowerTDFN	150 °C	-55 °C	4.5 V 10 V	25 nC		2.3 V		Surface Mount	MOSFET (Metal Oxide)	20 V	80 V		74 A	2340 pF	7 mOhm
INFINEON IAUC120N06S5N022ATMA1	N-Channel	8-PowerTDFN	175 °C	-55 °C	7 V 10 V	68 nC	4930 pF	3.4 V		Surface Mount	MOSFET (Metal Oxide)	20 V	60 V	136 W	170 A		2.24 mOhm	Automotive	PG-TDSON-8-34	AEC-Q101
INFINEON IAUCN10S5L094DATMA1		8-PowerTDFN	175 °C	-55 °C		30 nC		2.2 V		Surface Mount	MOSFET (Metal Oxide)		100 V		66 A	2180 pF	9.4 mOhm	Automotive	PG-TDSON-8-60	AEC-Q101	2 N-Channel 2 N-Channel (Dual)	96 W
INFINEON IQE046N08LM5CGSCATMA1	N-Channel	9-PowerWDFN	175 °C	-55 °C	4.5 V 10 V		3250 pF	2.3 V		Surface Mount	MOSFET (Metal Oxide)	20 V	80 V	2.5 W 100 W	15.6 A 99 A		4.6 mOhm		PG-WHTFN-9				38 nC
INFINEON IPP020N08N5AKSA1	N-Channel	TO-220-3	175 °C	-55 °C	6 V 10 V	223 nC		3.8 V		Through Hole	MOSFET (Metal Oxide)	20 V	80 V	375 W	120 A	16900 pF	0.002 mOhm		PG-TO220-3
INFINEON BSZ017NE2LS5IATMA1	N-Channel	8-PowerTDFN	150 °C	-55 °C	4.5 V 10 V	30 nC	2000 pF	2 V		Surface Mount	MOSFET (Metal Oxide)	16 V	25 V	2.1 W 50 W	27 A 40 A		1.7 mOhm
INFINEON BSC072N08NS5ATMA1	N-Channel	8-PowerTDFN	150 °C	-55 °C	6 V 10 V		2100 pF	3.8 V		Surface Mount	MOSFET (Metal Oxide)	20 V	80 V	2.5 W 69 W	74 A		7.2 mOhm		PG-TDSON-8-7				29 nC
INFINEON IAUC41N06S5N102ATMA1	N-Channel	8-PowerTDFN	175 °C	-55 °C	7 V 10 V		1112.1 pF	3.4 V		Surface Mount	MOSFET (Metal Oxide)	20 V	60 V	42 W	47 A		10.2 mOhm	Automotive	PG-TDSON-8-33	AEC-Q101			16.3 nC

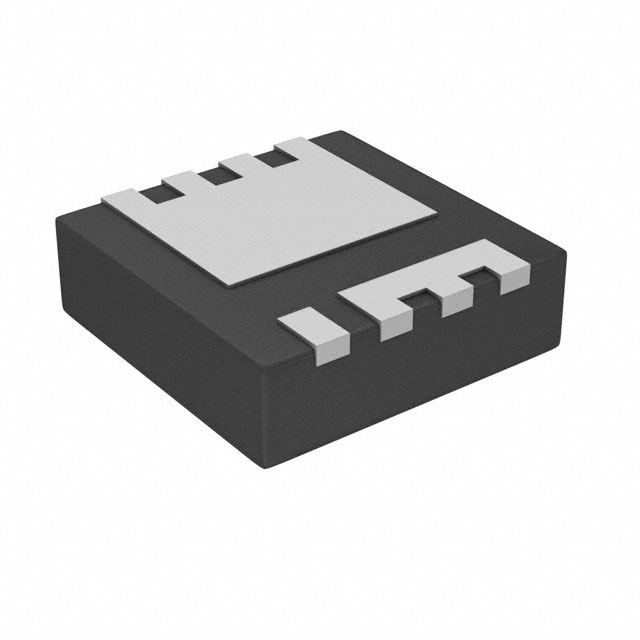

INFINEON IAUZ40N06S5N050ATMA1	N-Channel	8-PowerTDFN	175 °C	-55 °C		30.5 nC	2200 pF	3.4 V		Surface Mount	MOSFET (Metal Oxide)	20 V	60 V	71 W	40 A		5 mOhm	Automotive	PG-TSDSON-8-33	AEC-Q101
