TC1303C

TC1303C Series

2MHz 500mA Synchronous Buck Regulator + 300mA LDO w/Power Good

Manufacturer: Microchip Technology

Catalog

2MHz 500mA Synchronous Buck Regulator + 300mA LDO w/Power Good

...
PartVoltage/Current - Output 2w/SequencerPackage / CaseTopologyVoltage/Current - Output 1Mounting TypeNumber of Outputsw/LED Driverw/SupervisorVoltage - Supply [Min]Voltage - Supply [Max]Supplier Device PackageFrequency - SwitchingOperating Temperature [Max]Operating Temperature [Min]Voltage/Current - Output 1 [custom]Voltage/Current - Output 1 [custom]Package / Case [x]Package / Case [x]Voltage/Current - Output 1
10-DFN
Microchip Technology
TC1303B-1P0EMF
1.8 V
300 mA
10-VFDFN Exposed Pad
Linear (LDO) (1)
Step-Down (Buck) Synchronous (1)
1.375 V
500 mA
Surface Mount
2
2.7 V
5.5 V
10-DFN (3x3)
2 MHz
85 °C
-40 °C
10 MSOP
Microchip Technology
TC1303B-IA0EUNTR
3.3 V
300 mA
10-MSOP
10-TFSOP
Linear (LDO) (1)
Step-Down (Buck) Synchronous (1)
Surface Mount
2
2.7 V
5.5 V
10-MSOP
2 MHz
85 °C
-40 °C
2.5 V
500 mA
3 mm
0.118 in
10-DFN
Microchip Technology
TC1303B-SE0EMFTR
2.9 V
300 mA
10-VFDFN Exposed Pad
Linear (LDO) (1)
Step-Down (Buck) Synchronous (1)
Surface Mount
2
2.7 V
5.5 V
10-DFN (3x3)
2 MHz
85 °C
-40 °C
1.5 V
500 mA
10-DFN
Microchip Technology
TC1303B-DF0EMF
2.8 V
300 mA
10-VFDFN Exposed Pad
Linear (LDO) (1)
Step-Down (Buck) Synchronous (1)
Surface Mount
2
2.7 V
5.5 V
10-DFN (3x3)
2 MHz
85 °C
-40 °C
3 V
500 mA
10 MSOP
Microchip Technology
TC1303B-IA0EUN
3.3 V
300 mA
10-MSOP
10-TFSOP
Linear (LDO) (1)
Step-Down (Buck) Synchronous (1)
Surface Mount
2
2.7 V
5.5 V
10-MSOP
2 MHz
85 °C
-40 °C
2.5 V
500 mA
3 mm
0.118 in
10-DFN
Microchip Technology
TC1303B-SD0EMF
3 V
300 mA
10-VFDFN Exposed Pad
Linear (LDO) (1)
Step-Down (Buck) Synchronous (1)
Surface Mount
2
2.7 V
5.5 V
10-DFN (3x3)
2 MHz
85 °C
-40 °C
1.5 V
500 mA
Microchip Technology-TC1303B-ZP0EUNTR Special Purpose Voltage Regulators Synchronous Buck Regulator 2.7V to 5.5V Automotive AEC-Q100 10-Pin MSOP T/R
Microchip Technology
TC1303B-ZS0EUN
1.5 V
300 mA
10-MSOP
10-TFSOP
Linear (LDO) (1)
Step-Down (Buck) Synchronous (1)
500 mA
Surface Mount
2
2.7 V
5.5 V
10-MSOP
2 MHz
85 °C
-40 °C
3 mm
0.118 in
Adj
10-DFN
Microchip Technology
TC1303B-SP0EMFTR
1.8 V
300 mA
10-VFDFN Exposed Pad
Linear (LDO) (1)
Step-Down (Buck) Synchronous (1)
Surface Mount
2
2.7 V
5.5 V
10-DFN (3x3)
2 MHz
85 °C
-40 °C
1.5 V
500 mA

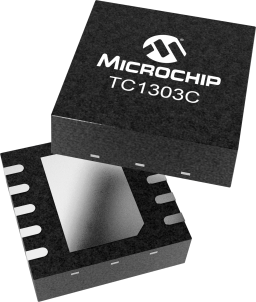

DFN / 10
Microchip Technology
TC1303C-ZA0EMF
3.3 V
300 mA
10-VFDFN Exposed Pad
Linear (LDO) (1)
Step-Down (Buck) Synchronous (1)
500 mA
Surface Mount
2
2.7 V
5.5 V
10-DFN (3x3)
2 MHz
85 °C
-40 °C
Adj
DFN / 10
Microchip Technology
TC1303C-ZI0EMFTR
2.5 V
300 mA
10-VFDFN Exposed Pad
Linear (LDO) (1)
Step-Down (Buck) Synchronous (1)
500 mA
Surface Mount
2
2.7 V
5.5 V
10-DFN (3x3)
2 MHz
85 °C
-40 °C
Adj

Key Features

- Independent 300mA Low-Dropout Regulator
- Power-good Monitor on the Buck and LDO Output with 300ms Delay
- Both Outputs Internally Compensated
- Independent Shutdown for the Buck and LDO Outputs
- Automatic PWM to PFM mode transition
- Small 10-Pin 3x3 DFN and MSOP
- Undervoltage Lockout (UVLO)
- Output Short Circuit and Overtemperature Protection

Description

AI
The TC1303C combines a 500mA synchronous buck regulator and a 300mA low-dropout (LDO) regulator with a power-good monitor to provide a highly integrated solution for applications that require multiple supply voltages. The power-good function monitors the outputs of the Buck and LDO regulators.
