655-53 Series

Manufacturer: Wakefield Thermal Solutions

Catalog

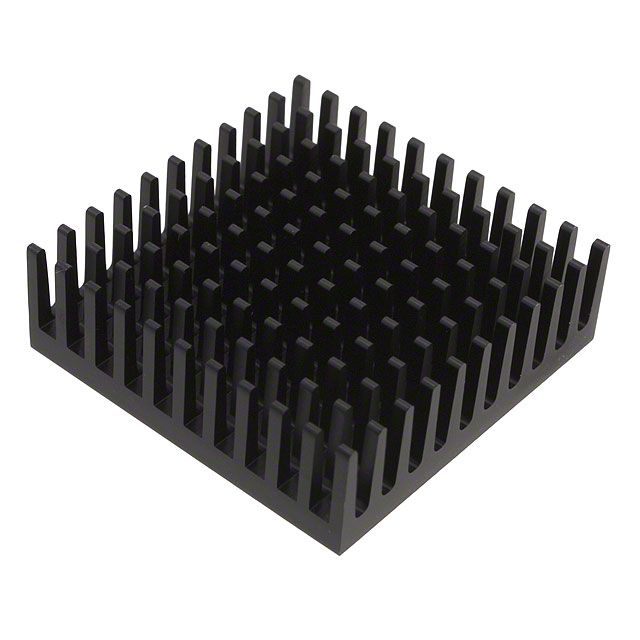

OMNIDIRECTIONAL PIN FIN HEAT SINK FOR 40MM BGA & POWER PC ROHS COMPLIANT: YES

Part	Fin Height	Fin Height	Type	Shape	Thermal Resistance @ Forced Air Flow	Package Cooled	Length [x]	Length [x]	Attachment Method	Material Finish	Material	Power Dissipation @ Temperature Rise	Width [x]	Width [x]
Wakefield Thermal Solutions 655-53ABT6	13.34 mm	0.525 in	Top Mount	Pin Fins Square	2 °C/W	ASIC BGA CPU LGA	40.64 mm	1.6 in	Thermal Tape Adhesive	Black Anodized	Aluminum	4 W	1.6 "	40.64 mm
Wakefield Thermal Solutions 655-53ABT1E	13.34 mm	0.525 in	Top Mount	Pin Fins Square	2 °C/W	ASIC BGA CPU LGA	40.64 mm	1.6 in	Thermal Tape Adhesive	Black Anodized	Aluminum	4 W	1.6 "	40.64 mm
Wakefield Thermal Solutions 655-53ABT5	13.34 mm	0.525 in	Top Mount	Pin Fins Square	2 °C/W	ASIC BGA CPU LGA	40.64 mm	1.6 in	Thermal Tape Adhesive	Black Anodized	Aluminum	4 W	1.6 "	40.64 mm
Wakefield Thermal Solutions 655-53AB	13.27 mm	0.522 in	Top Mount	Pin Fins Square	2 °C/W	ASIC BGA CPU LGA	40.64 mm	1.6 in	Thermal Tape Adhesive	Black Anodized	Aluminum	4 W	1.6 "	40.64 mm
Wakefield Thermal Solutions 655-53ABT6	13.34 mm	0.525 in	Top Mount	Pin Fins Square	2 °C/W	ASIC BGA CPU LGA	40.64 mm	1.6 in	Thermal Tape Adhesive	Black Anodized	Aluminum	4 W	1.6 "	40.64 mm
Wakefield Thermal Solutions 655-53ABT5	13.34 mm	0.525 in	Top Mount	Pin Fins Square	2 °C/W	ASIC BGA CPU LGA	40.64 mm	1.6 in	Thermal Tape Adhesive	Black Anodized	Aluminum	4 W	1.6 "	40.64 mm
Wakefield Thermal Solutions 655-53AB	13.27 mm	0.522 in	Top Mount	Pin Fins Square	2 °C/W	ASIC BGA CPU LGA	40.64 mm	1.6 in	Thermal Tape Adhesive	Black Anodized	Aluminum	4 W	1.6 "	40.64 mm
Wakefield Thermal Solutions 655-53ABT3	13.34 mm	0.525 in	Top Mount	Pin Fins Square	2 °C/W	ASIC BGA CPU LGA	40.64 mm	1.6 in	Thermal Tape Adhesive	Black Anodized	Aluminum	4 W	1.6 "	40.64 mm
Wakefield Thermal Solutions 655-53ABT3	13.34 mm	0.525 in	Top Mount	Pin Fins Square	2 °C/W	ASIC BGA CPU LGA	40.64 mm	1.6 in	Thermal Tape Adhesive	Black Anodized	Aluminum	4 W	1.6 "	40.64 mm
Wakefield Thermal Solutions 655-53ABT4E	13.34 mm	0.525 in	Top Mount	Pin Fins Square	2 °C/W	ASIC BGA CPU LGA	40.64 mm	1.6 in	Thermal Tape Adhesive	Black Anodized	Aluminum	4 W	1.6 "	40.64 mm
