STPSC15H12 Series

Catalog

SILICON CARBIDE SCHOTTKY DIODE, SINGLE, 1.2 KV, 15 A, 94 NC, TO-220AC

Part	Supplier Device Package	Speed	Current - Reverse Leakage @ Vr	Package / Case	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Capacitance @ Vr, F	Technology
STMicroelectronics STPSC15H12D	TO-220AC	500 mA	90 µA	TO-220-2	15 A	1.5 V	-40 °C	175 ░C	0 ns	1.2 kV	Through Hole	1200 pF	SiC (Silicon Carbide) Schottky

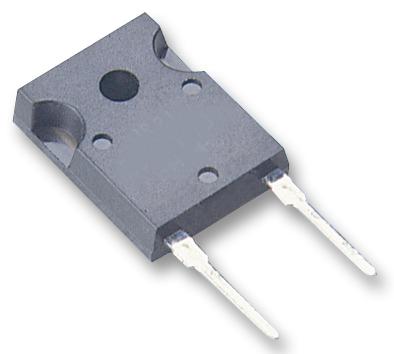

STMicroelectronics STPSC15H12WL	DO-247	500 mA	90 µA	DO-247-2 (Straight Leads)	15 A	1.5 V	-40 °C	175 ░C	0 ns	1.2 kV	Through Hole	1200 pF	SiC (Silicon Carbide) Schottky
