ATWILC1000-IC Series

IEEE 802.11 b/g/n IoT Link Controller SoC

Catalog

IEEE 802.11 b/g/n IoT Link Controller SoC

Part	Supplier Device Package	Sensitivity	Frequency	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	GPIO	RF Family/Standard	Memory Size [custom]	Memory Size [custom]	Serial Interfaces	Current - Receiving	Data Rate (Max)	Power - Output	Modulation	Current - Transmitting	Package / Case	Current - Receiving [Min]	Current - Receiving [Max]	Current - Transmitting [Min]	Current - Transmitting [Max]	Antenna Type	Data Rate	For Use With/Related Products	Supplied Contents	Frequency [Min]	Frequency [Max]
Microchip Technology ATWILC1000A-MU-T	40-QFN (5x5)	-98 dBm	2.4 GHz	802.11b/g/n	3.6 V	1.62 V	TxRx + MCU	85 °C	-40 °C	Surface Mount	9	WiFi	128 kB	192 kB	I2C SDIO SPI UART	68 mA	72.2 Mbps	20.6 dBm	CCK DSSS OFDM	230 mA	40-VFQFN Exposed Pad
Microchip Technology ATWILC1000B-MU-Y042	40-QFN (5x5)	-98 dBm	2.4 GHz	802.11b/g/n	3.6 V	1.62 V	TxRx + MCU	85 °C	-40 °C	Surface Mount	9	WiFi	128 kB	224 kB	I2C SDIO SPI UART		72.2 Mbps	20.5 dBm	CCK DSSS OFDM		40-VFQFN Exposed Pad	52.5 mA	58.5 mA	244 mA	294 mA

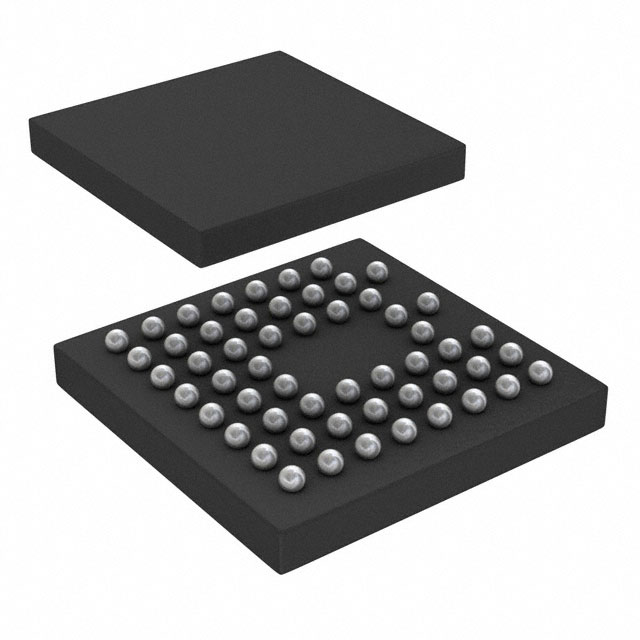

Microchip Technology ATWILC1000B-UU-Y	55-WLCSP (3.25x3.25)	-98 dBm	2.4 GHz	802.11b/g/n	3.6 V	1.62 V	TxRx + MCU	85 °C	-40 °C	Surface Mount	9	WiFi	128 kB	224 kB	I2C SDIO SPI UART		72.2 Mbps	20.5 dBm	CCK DSSS OFDM		55-UFBGA WLCSP	52.5 mA	58.5 mA	244 mA	294 mA
Microchip Technology ATWILC1000B-MU-Y	40-QFN (5x5)	-98 dBm	2.4 GHz	802.11b/g/n	3.6 V	1.62 V	TxRx + MCU	85 °C	-40 °C	Surface Mount	9	WiFi	128 kB	224 kB	I2C SDIO SPI UART		72.2 Mbps	20.5 dBm	CCK DSSS OFDM		40-VFQFN Exposed Pad	52.5 mA	58.5 mA	244 mA	294 mA

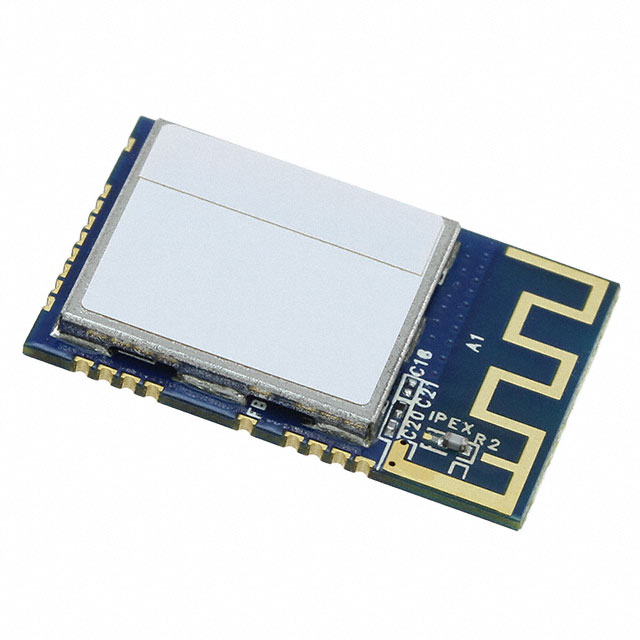

Microchip Technology ATWILC1000-MR110PA		-98 dBm	2.4 GHz	802.11b/g/n	4.3 V	3.3 V		85 °C	-40 °C	Surface Mount		WiFi			I2C SDIO SPI UART			19 dBm	16-QAM 64-QAM BPSK CCK DBPSK DQPSK OFDM QPSK		28-SMD Module Exposed Pad	29 mA	68 mA	29 mA	230 mA	Integrated Trace	72.2 Mbps

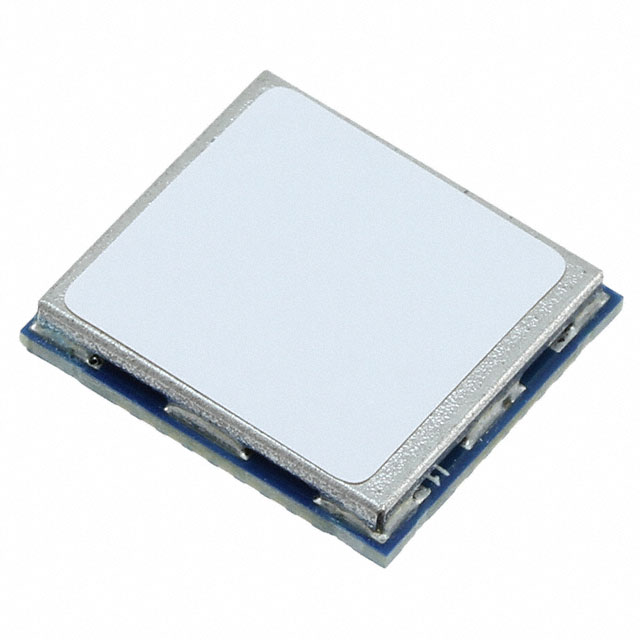

Microchip Technology ATWILC1000-MR1100B		-98 dBm	2.4 GHz	802.11b/g/n	4.2 V	3 V		85 °C	-40 °C	Surface Mount		WiFi			I2C SDIO SPI UART			19 dBm	16-QAM 64-QAM BPSK CCK DBPSK DQPSK OFDM QPSK		28-SMD Module Exposed Pad	29 mA	68 mA	29 mA	230 mA	Antenna Not Included	72.2 Mbps
Microchip Technology ATWILC1000-SD			2.4 GHz				Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN)																					ATWILC1000	Board(s)
Microchip Technology ATWILC1000B-MU-T	40-QFN (5x5)	-98 dBm	2.4 GHz	802.11b/g/n	3.6 V	1.62 V	TxRx + MCU	85 °C	-40 °C	Surface Mount	9	WiFi	128 kB	224 kB	I2C SDIO SPI UART		72.2 Mbps	20.5 dBm	CCK DSSS OFDM		40-VFQFN Exposed Pad	52.5 mA	58.5 mA	244 mA	294 mA
Microchip Technology ATWILC1000A-UU-T	40-QFN (5x5)	-98 dBm	2.4 GHz	802.11b/g/n	3.6 V	1.62 V	TxRx + MCU	85 °C	-40 °C	Surface Mount	9	WiFi	128 kB	192 kB	I2C SDIO SPI UART	68 mA	72.2 Mbps	20.6 dBm	CCK DSSS OFDM	230 mA	40-VFQFN Exposed Pad
Microchip Technology ATWILC1000-MR110PB-T		-94 dBm		802.11b/g/n	3.6 V	1.8 V		85 °C	-40 °C	Surface Mount		WiFi			I2C SDIO SPI UART	63 mA		18.7 dBm	CCK DSSS OFDM		Module					Integrated Trace	54 Mbps			2.412 GHz	2.472 GHz

Catalog

IEEE 802.11 b/g/n IoT Link Controller SoC

Key Features

• * IEEE 802.11 b/g/n (1x1) for up to 72 Mbps

• * Integrated PA and T/R Switch

• * Superior Sensitivity and Range via advanced PHY signal processing

• * Wi-Fi Direct, station mode and Soft-AP support

• * Supports IEEE 802.11 WEP, WPA2 Security Enterprise

• * On-chip memory management engine to reduce host load

• * SPI and SDIO host interfaces

Description

Microchip's SmartConnect ATWILC1000 is an IEEE 802.11 b/g/n IoT link controller IC. The ATWILC1000 connects to Microchip AVR/SMART MCUs, SMART MPUs, FPGAs and other processors with minimal resource requirements and a simple SPI/SDIO-to-Wi-Fi interface. The ATWILC1000 supports single stream 1x1 802.11n mode providing tested throughput of up to 46 Mbps UDP & 28 Mbps TCP/IP. The ATWILC1000 features a fully integrated Power Amplifier, LNA, Switch and Power Management. The only external clock source needed is a high-speed crystal or oscillator. The ATWILC1000 can be used in Linux, RTOS or Baremetal Environments. **The ATWILC1000 driver is part of the Mainline Linux Kernel beginning in version 5.9 found at Linux.org in the Kernel mainline under driver/net/wireless/microchip.** The WILC1000 Linux driver development is now an integrated development under the [Linux4sam.org](https://linux4sam.org/bin/view/Linux4SAM) project. The current stable release can be found at [github.com/linux4sam/linux-at91/tree/master/drivers/staging/wilc1000](https://github.com/linux4sam/linux-at91/tree/master/drivers/staging/wilc1000). The current development branch can be found at <https://github.com/linux4sam/linux-at91/tree/linux-5.10-at91/drivers/net/wireless/microchip> The WILC demo, serial bridge and firmware are hosted at [github.com/linux4wilc](https://github.com/linux4wilc) Microchip's complimentary and confidential [Wireless Check online design review service](https://www.microchip.com/en-us/support/design-help/design-check-services) is available for customers who have selected our products for their application design-in\*. \*The online design review service is subject to Microchip's [Program Terms and Conditions](https://www.microchip.com/en-us/support/design-help/design-check-services/design-check-services-program-terms-and-conditions) and requires a myMicrochip account. [Available in a fully-certified modules with u.FL connector or PCB antenna.](https://www.microchip.com/en-us/product/atwilc1000)
