HIF3H Series

Catalog

CONN HEADER VERT 30POS 2.54MM

...

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Shape	Shrouding	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Contact Material	Insulation Material	Number of Positions	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Insulation Color	Termination	Contact Length - Mating	Contact Length - Mating [x]	Fastening Type	Mounting Type	Connector Type	Voltage Rating	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish - Mating	Current Rating (Amps)	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post [x]	Contact Length - Post [x]	Style	Current Rating (Amps)	Number of Positions [custom]	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height [z]	Insulation Height [z]	Number of Rows

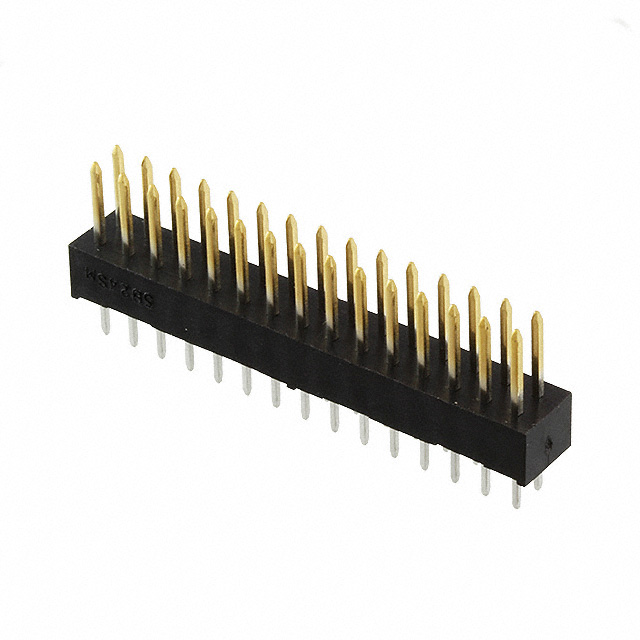

Hirose Electric Co Ltd HIF3H-30PB-2.54DSA(71)	78.7 µin	2 µm	Square	Unshrouded	2	0.138 in	3.5 mm	Brass	Polybutylene Terephthalate (PBT)	30	Male Pin	0.1 in	2.54 mm	-55 C	85 °C	0.1 "	2.54 mm	0.591 in	15 mm	Black	Solder	7 mm	0.276 in	Push-Pull	Through Hole	Header	300 VDC	UL94 V-0	0.177 in	4.5 mm	All	8 µin	0.203 µm	Tin	Gold	3 A

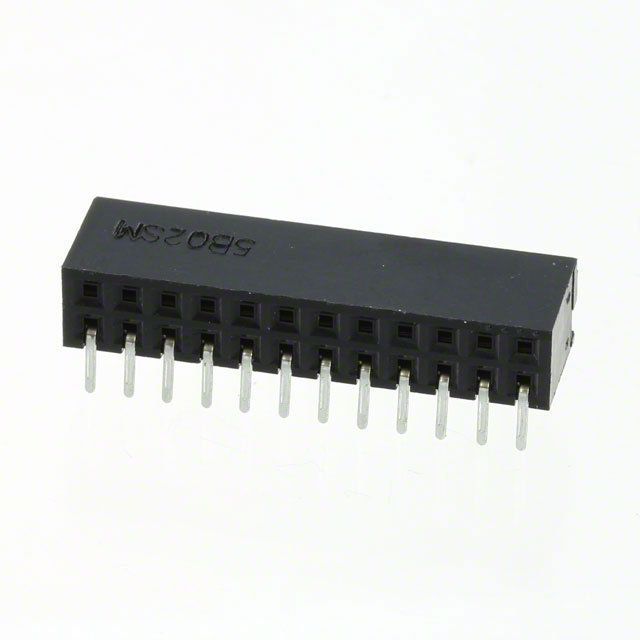

Hirose Electric Co Ltd HIF3H-24DB-2.54DS(71)			Square		2			Phosphor Bronze	Polybutylene Terephthalate (PBT)	24	Female Socket	0.1 in	2.54 mm	-55 C	85 °C	0.1 "	2.54 mm			Black	Solder				Right Angle Through Hole	Receptacle	300 VAC	UL94 V-0			All	8 µin	0.203 µm	Tin	Gold	3 A	General Purpose	39.4 çin	1 çm	0.236 "	6 mm	0.126 "	3.2 mm

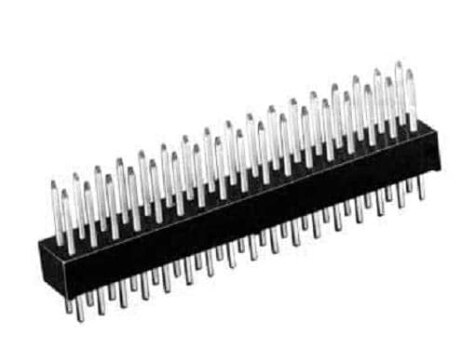

Hirose Electric Co Ltd HIF3H-30PB-2.54DSA(61)	78.7 µin	2 µm	Square	Shrouded - 4 Wall	2	0.138 in	3.5 mm	Brass	Polybutylene Terephthalate (PBT)	30	Male Pin	0.1 in	2.54 mm	-55 C	85 °C	0.1 "	2.54 mm	0.591 in	15 mm	Black	Solder	7 mm	0.276 in	Push-Pull	Through Hole	Header	200 V	UL94 V-0	0.177 in	4.5 mm	All	8 µin	0.203 µm	Tin	Gold									Board to Cable/Wire	Varies by Wire Gauge

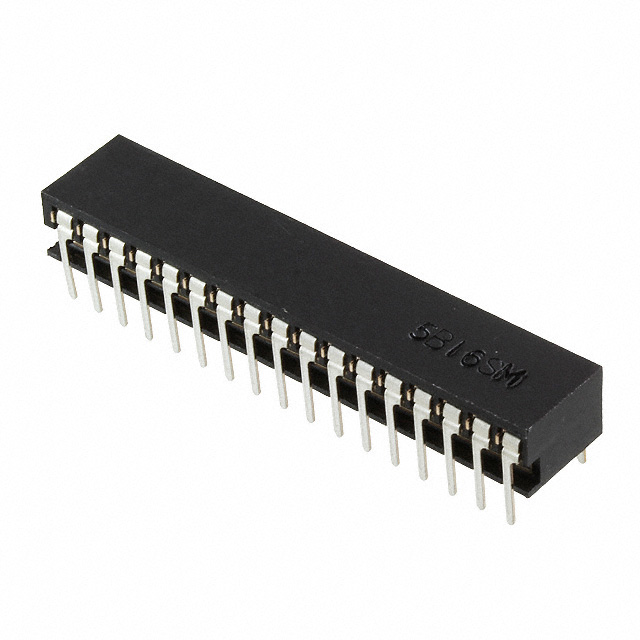

Hirose Electric Co Ltd HIF3H-34DB-2.54DS(71)			Square		2			Phosphor Bronze	Polybutylene Terephthalate (PBT)		Female Socket	0.1 in	2.54 mm	-55 C	85 °C	0.1 "	2.54 mm			Black	Solder				Right Angle Through Hole	Receptacle	300 VAC	UL94 V-0			All	8 µin	0.203 µm	Tin	Gold	3 A	General Purpose	39.4 çin	1 çm	0.236 "	6 mm	0.126 "	3.2 mm			34
Hirose Electric Co Ltd HIF3H-26P-2.54W			Square	Unshrouded	2	0.138 in	3.5 mm	Brass	Polybutylene Terephthalate (PBT)	26	Male Pin	0.1 in	2.54 mm	-55 C	85 °C	0.1 "	2.54 mm	0.591 in	15 mm	Black	Wire Wrap	7 mm	0.276 in	Push-Pull	Through Hole	Header	300 VDC	UL94 V-0	0.177 in	4.5 mm	All	8 µin	0.203 µm	Gold	Gold	3 A		8 µin	0.203 µm			0.63 in	16 mm				1.043 in	26.5 mm
Hirose Electric Co Ltd HIF3H-18DB-2.54DS(71)			Square		2			Phosphor Bronze	Polybutylene Terephthalate (PBT)	18	Female Socket	0.1 in	2.54 mm	-55 C	85 °C	0.1 "	2.54 mm			Black	Solder				Right Angle Through Hole	Receptacle	300 VAC	UL94 V-0			All	8 µin	0.203 µm	Tin	Gold	3 A	General Purpose	39.4 çin	1 çm	0.236 "	6 mm	0.126 "	3.2 mm
Hirose Electric Co Ltd HIF3H-50DA-2.54DSA(75)			Square		2	0.118 in	3 mm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	50	Female Socket	0.1 in	2.54 mm	-55 C	85 °C	0.1 "	2.54 mm			Black	Solder				Through Hole	Receptacle	300 VAC	UL94 V-0			All				Gold	3 A	General Purpose												9.5 mm	0.374 in
Hirose Electric Co Ltd HIF3H-10DB-2.54DS(61)			Square		2			Phosphor Bronze	Polybutylene Terephthalate (PBT)	10	Female Socket	0.1 in	2.54 mm	-55 C	85 °C	0.1 "	2.54 mm			Black	Solder			Push-Pull	Right Angle Through Hole	Receptacle	300 VAC	UL94 V-0			All	8 µin	0.203 µm	Tin	Gold	3 A		39.4 çin	1 çm	0.236 "	6 mm	0.126 "	3.2 mm	Board to Cable/Wire

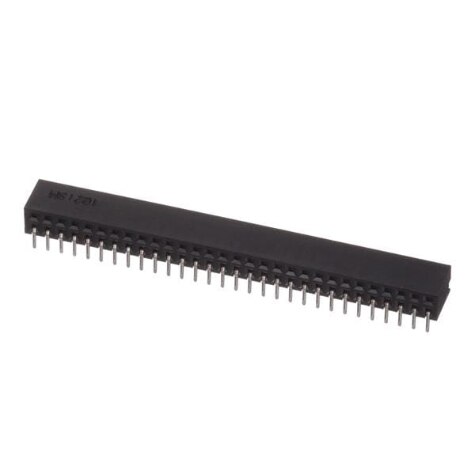

Hirose Electric Co Ltd HIF3H-60DB-2.54DS(61)			Square		2			Phosphor Bronze	Polybutylene Terephthalate (PBT)	60	Female Socket	0.1 in	2.54 mm	-55 C	85 °C	0.1 "	2.54 mm			Black	Solder			Push-Pull	Right Angle Through Hole	Receptacle	300 VAC	UL94 V-0			All	8 µin	0.203 µm	Tin	Gold	3 A		39.4 çin	1 çm	0.236 "	6 mm	0.126 "	3.2 mm	Board to Cable/Wire

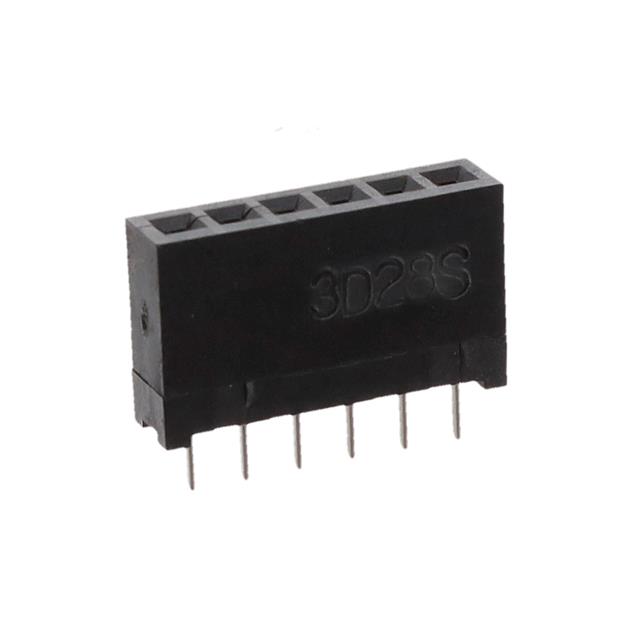

Hirose Electric Co Ltd HIF3H-6SA-2.54DSA(61)			Square			0.118 in	3 mm	Phosphor Bronze	Polybutylene Terephthalate (PBT)	6	Female Socket			-55 C	85 °C	0.1 "	2.54 mm			Black	Solder			Push-Pull	Through Hole	Receptacle	300 VAC	UL94 V-0			All	8 µin	0.203 µm	Tin	Gold	3 A		39.4 çin	1 çm					Board to Cable/Wire					9.5 mm	0.374 in	1
