NSR2030QMU Series

Schottky Diodes Full Bridge 30 V 2 Amp

Catalog

Schottky Diodes Full Bridge 30 V 2 Amp

Part	Supplier Device Package	Diode Type	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Package / Case	Operating Temperature	Mounting Type

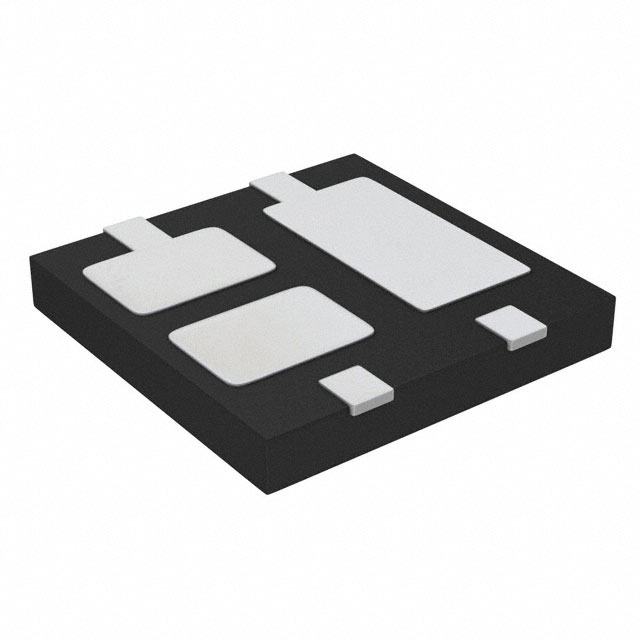

ON Semiconductor NSR2030QMUTAG	4-UDFN (3.5x3.5)	Single Phase	650 mV	Schottky	2 A	20 µA	4-UDFN Exposed Pad	125 ¯C	Surface Mount
ON Semiconductor NSR2030QMUTWG	4-UDFN (3.5x3.5)	Single Phase	650 mV	Schottky	2 A	20 µA	4-UDFN Exposed Pad	125 ¯C	Surface Mount

Catalog

Schottky Diodes Full Bridge 30 V 2 Amp

Key Features

• Extremely Fast Switching Speed

• Low Forward Voltage − 540 mV (Typ) @ IF= 2 A

• These Devices are Pb-Free, Halogen Free and are RoHS Compliant

Description

These full wave bridge, using Schottky barrier diodes, are designed for the rectification of the high speed signal of wireless charging. The NSR2030QMUTWG has a very low forward voltage that will reduce conduction loss. It is housed in a UDFN 3.5 x 3.5 x 0.5 mm package that is ideal for space constrained wireless applications.
