STL4 Series

Catalog

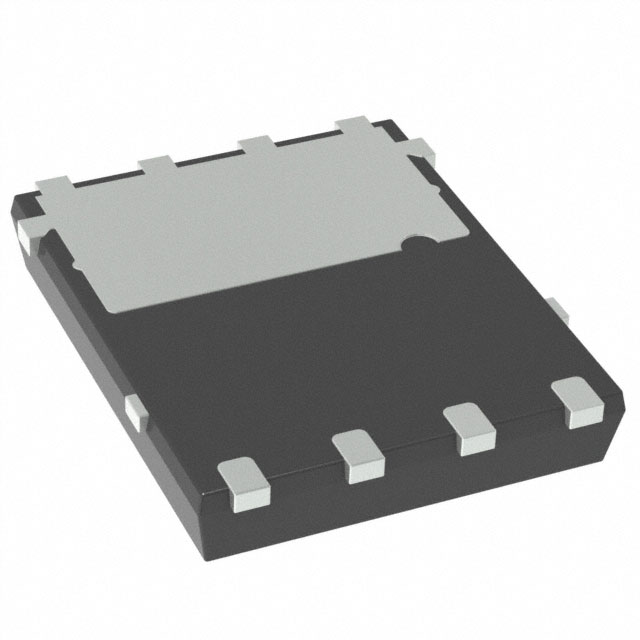

N-CHANNEL 800 V, 2.1 OHM TYP., 2 A MDMESH K5 POWER MOSFET IN A POWERFLAT 5X6 VHV PACKAGE

Part	FET Type	Vgs (Max)	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Package / Case	Technology	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Operating Temperature	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Vgs (Max) [Max]
STMicroelectronics STL4LN80K5	N-Channel	30 V	5 V	110 pF	800 V	10 V	3 A	8-PowerVDFN	MOSFET (Metal Oxide)	38 W	2.6 Ohm	PowerFlat™ (5x6) VHV	4 nC	150 °C	-55 °C	Surface Mount
STMicroelectronics STL4P2UH7	P-Channel		1 V	510 pF	20 V		4 A	6-PowerWDFN	MOSFET (Metal Oxide)	2.4 W	100 mOhm	PowerFlat™ (2x2)	4.8 nC			Surface Mount	150 °C	1.8 V	4.5 V	8 V
