EPC2307 Series
Manufacturer: EPC
Beta
⌘K

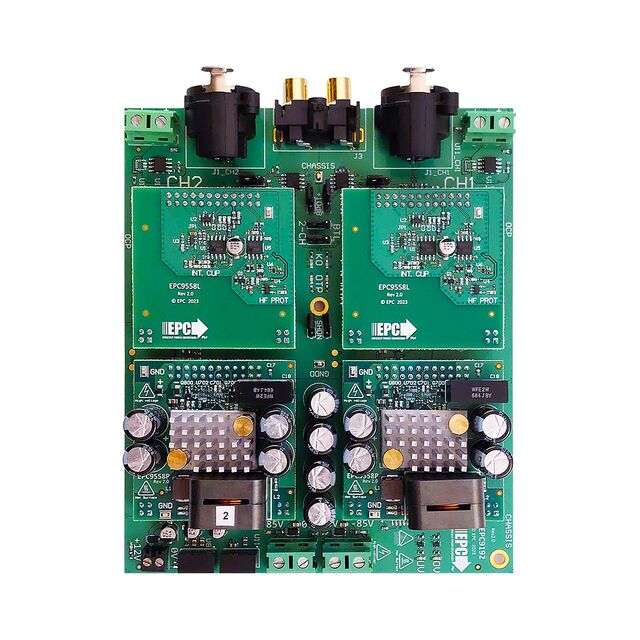

EVAL BOARD FOR EPC2307
| Part | Board Type | Supplied Contents | Utilized IC / Part | Max Output Power x Channels @ Load [custom] | Max Output Power x Channels @ Load | Voltage - Supply | Voltage - Supply [Max] | Output Type | Contents | Drain to Source Voltage (Vdss) | Rds On (Max) @ Id, Vgs | Drive Voltage (Max Rds On, Min Rds On) | Current - Continuous Drain (Id) @ 25°C | Input Capacitance (Ciss) (Max) @ Vds | Gate Charge (Qg) (Max) @ Vgs [Max] | Mounting Type | Vgs(th) (Max) @ Id | Technology | Vgs (Max) [Max] | Vgs (Max) [Min] | FET Type | Supplier Device Package | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EPC | Fully Populated | Board(s) | EPC2307 | 2 | 700 W | 42 V | 85 V | 2-Channel (Stereo) | Board(s) | ||||||||||||||||

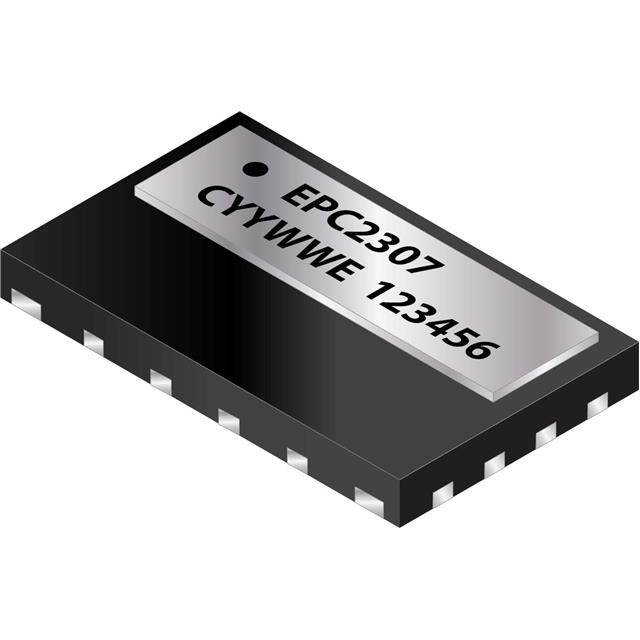

 EPC | 200 V | 10 mOhm | 5 V | 48 A | 1401 pF | 10.6 nC | Surface Mount | 2.5 V | GaNFET (Gallium Nitride) | 6 V | -4 V | N-Channel | 7-QFN (3x5) | 7-PowerWQFN | -40 °C | 150 °C |
