14-C280 Series

Catalog

CONN IC DIP SOCKET 14POS GOLD

Part	Termination Post Length	Termination Post Length	Current Rating (Amps)	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Material - Mating	Termination	Pitch - Post	Pitch - Post	Mounting Type	Features	Number of Positions or Pins (Grid)	Type	Type	Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Material - Post [custom]	Contact Finish - Post	Housing Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]
Aries Electronics 14-C280-31	0.04 in	1.02 mm	3 A	UL94 V-0	0.1 "	2.54 mm	Beryllium Copper	Solder	0.1 in	2.54 mm	Surface Mount	Closed Frame	14	7.62 mm	0.3 in	DIP	10 Áin	0.25 çm	Gold	Brass	Gold	Polyamide (PA46) Nylon 4/6 Glass Filled	0.25 µm	10 µin	-55 C	125 °C
Aries Electronics 14-C280-30	0.04 in	1.02 mm	3 A	UL94 V-0	0.1 "	2.54 mm	Beryllium Copper	Solder	0.1 in	2.54 mm	Surface Mount	Closed Frame	14	7.62 mm	0.3 in	DIP	200 µin	5.08 µm	Gold	Brass	Tin	Polyamide (PA46) Nylon 4/6 Glass Filled	0.25 µm	10 µin	-55 C	105 ░C

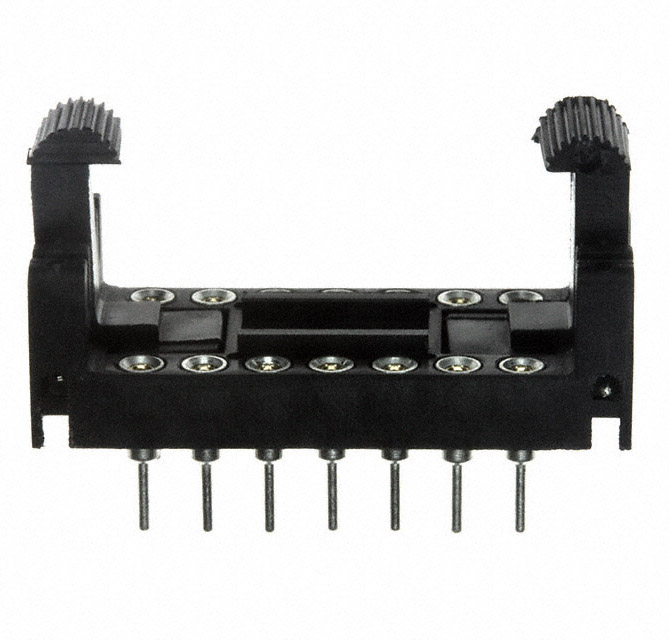

Aries Electronics 14-C280-10	0.125 in	3.18 mm	3 A	UL94 V-0	0.1 "	2.54 mm	Beryllium Copper	Solder	0.1 in	2.54 mm	Through Hole	Closed Frame	14	7.62 mm	0.3 in	DIP	200 µin	5.08 µm	Gold	Brass	Tin	Polyamide (PA46) Nylon 4/6 Glass Filled	0.25 µm	10 µin	-55 C	105 ░C
Aries Electronics 14-C280-10T	0.125 in	3.18 mm	3 A	UL94 V-0	0.1 "	2.54 mm	Beryllium Copper	Solder	0.1 in	2.54 mm	Through Hole	Closed Frame	14	7.62 mm	0.3 in	DIP	200 µin	5.08 µm		Brass	Tin	Polyamide (PA46) Nylon 4/6 Glass Filled	5.08 µm	200 µin	-55 C	105 ░C
