504195 Series

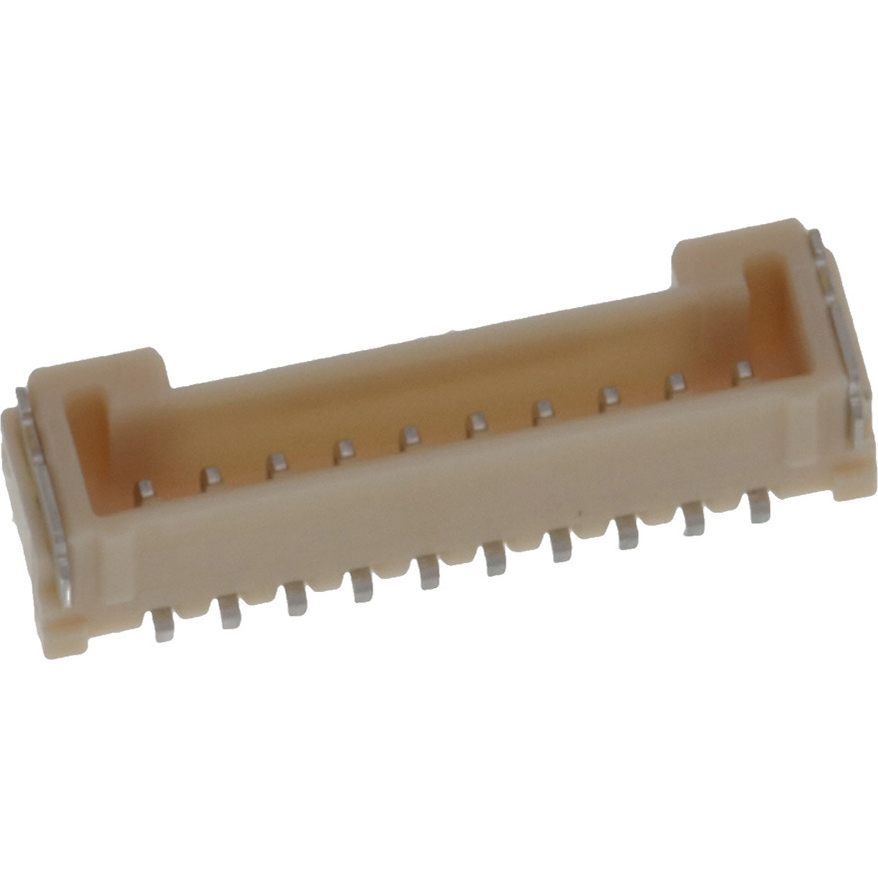

Micro-Lock 1.25mm Pitch Single-Row Right-Angle Header, Beige, 10 Circuits
Manufacturer: Molex
Catalog
Micro-Lock 1.25mm Pitch Single-Row Right-Angle Header, Beige, 10 Circuits
Beta
⌘K
Micro-Lock 1.25mm Pitch Single-Row Right-Angle Header, Beige, 10 Circuits
Micro-Lock 1.25mm Pitch Single-Row Right-Angle Header, Beige, 10 Circuits
Micro-Lock 1.25mm Pitch Single-Row Right-Angle Header, Beige, 10 Circuits

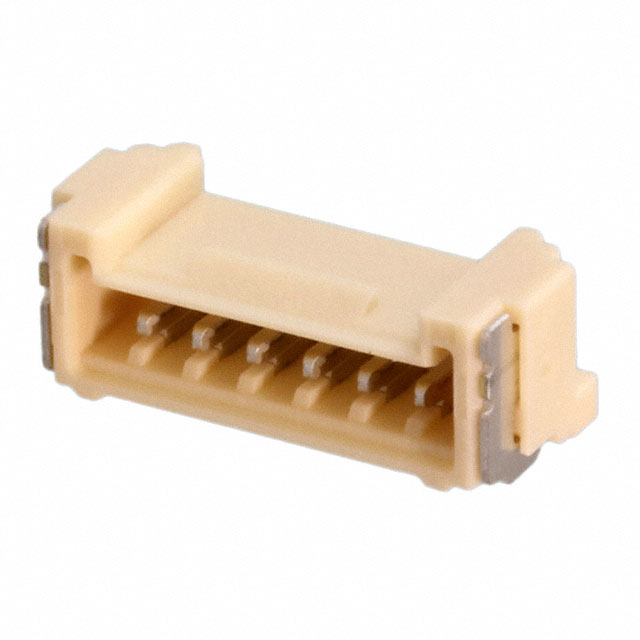

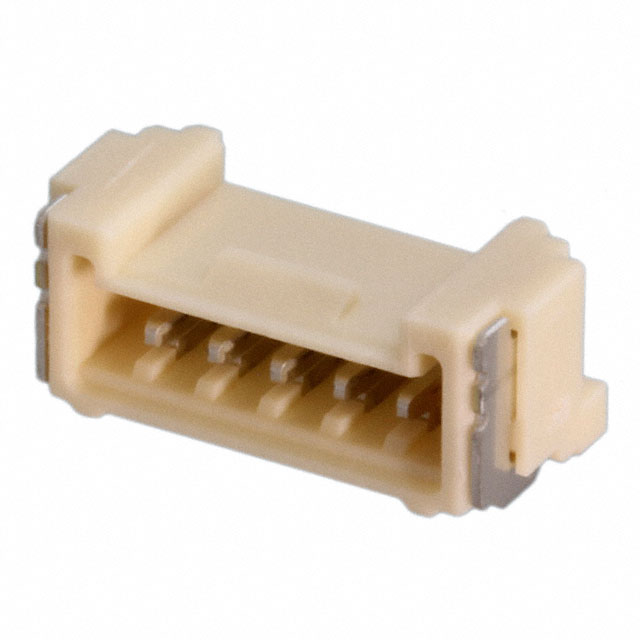

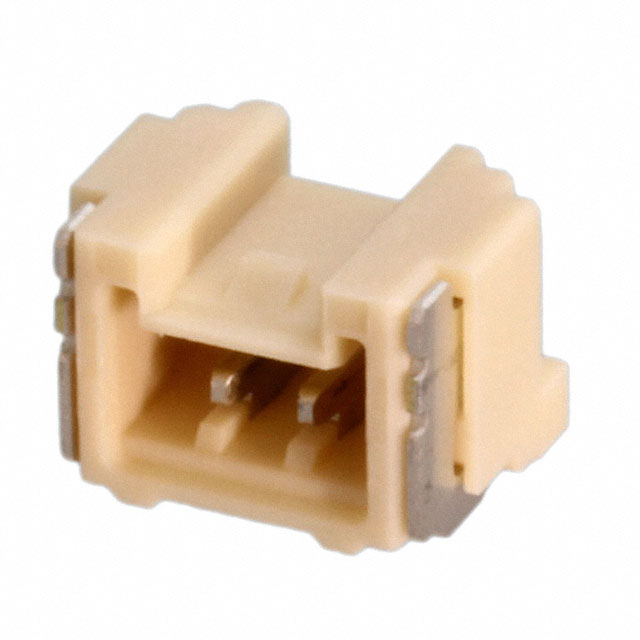

| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Type | Contact Shape | Mounting Type | Contact Material | Insulation Color | Number of Positions | Pitch - Mating | Pitch - Mating | Features | Connector Type | Termination | Style | Insulation Height | Insulation Height | Shrouding | Contact Finish - Post | Fastening Type | Insulation Material | Number of Rows | Number of Positions Loaded | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 39.4 Áin | 1 Ám | 39.4 çin | 1 çm | 39.4 µin | 1 µm | Male Blade | Rectangular | Right Angle Surface Mount | Brass | Natural | 15 | 0.049 in | 1.25 mm | Solder Retention | Header | Solder | Board to Cable/Wire | 4.15 mm | 0.163 " | Shrouded - 4 Wall | Tin | Latch Lock | Glass Filled Nylon Polyamide (PA) | 1 | All | UL94 V-0 | ||||
Molex | 39.4 Áin | 1 Ám | 39.4 çin | 1 çm | 39.4 µin | 1 µm | Male Blade | Rectangular | Right Angle Surface Mount | Brass | Natural | 16 | 0.049 in | 1.25 mm | Solder Retention | Header | Solder | Board to Cable/Wire | 4.15 mm | 0.163 " | Shrouded - 4 Wall | Tin | Latch Lock | Glass Filled Nylon Polyamide (PA) | 1 | All | UL94 V-0 | ||||
 Molex | 39.4 çin | 1 çm | 39.4 µin | 1 µm | Male Blade | Rectangular | Right Angle Surface Mount | Brass | Natural | 6 | 0.049 in | 1.25 mm | Solder Retention | Header | Solder | Board to Cable/Wire | 4.15 mm | 0.163 " | Shrouded - 4 Wall | Tin | Latch Lock | Glass Filled Nylon Polyamide (PA) | 1 | All | UL94 V-0 | ||||||
Molex | 39.4 Áin | 1 Ám | 39.4 çin | 1 çm | 39.4 µin | 1 µm | Male Blade | Rectangular | Right Angle Surface Mount | Brass | Natural | 12 | 0.049 in | 1.25 mm | Solder Retention | Header | Solder | Board to Cable/Wire | 4.15 mm | 0.163 " | Shrouded - 4 Wall | Tin | Latch Lock | Glass Filled Nylon Polyamide (PA) | 1 | All | UL94 V-0 | ||||
 Molex | 39.4 µin | 1 µm | Male Blade | Rectangular | Right Angle Surface Mount | Brass | Natural | 8 | 0.049 in | 1.25 mm | Solder Retention | Header | Solder | Board to Cable/Wire | 4.15 mm | 0.163 " | Shrouded - 4 Wall | Tin | Latch Lock | Glass Filled Nylon Polyamide (PA) | 1 | All | UL94 V-0 | ||||||||
Molex | 39.4 µin | 1 µm | Male Blade | Rectangular | Right Angle Surface Mount | Brass | Natural | 9 | 0.049 in | 1.25 mm | Solder Retention | Header | Solder | Board to Cable/Wire | 4.15 mm | 0.163 " | Shrouded - 4 Wall | Tin | Latch Lock | Glass Filled Nylon Polyamide (PA) | 1 | All | UL94 V-0 | ||||||||
 Molex | 39.4 çin | 1 çm | 39.4 µin | 1 µm | Male Blade | Rectangular | Right Angle Surface Mount | Brass | Natural | 5 | 0.049 in | 1.25 mm | Solder Retention | Header | Solder | Board to Cable/Wire | 4.15 mm | 0.163 " | Shrouded - 4 Wall | Tin | Latch Lock | Glass Filled Nylon Polyamide (PA) | 1 | All | UL94 V-0 | ||||||
 Molex | 39.4 çin | 1 çm | 39.4 µin | 1 µm | Male Blade | Rectangular | Right Angle Surface Mount | Brass | Orange | 7 | 0.049 in | 1.25 mm | Solder Retention | Header | Solder | Board to Cable/Wire | 4.15 mm | 0.163 " | Shrouded - 4 Wall | Tin | Latch Lock | Glass Filled Nylon Polyamide (PA) | 1 | All | UL94 V-0 | -40 C | 105 ░C | 1.5 A | 50 VAC | ||
 Molex | 39.4 çin | 1 çm | 39.4 µin | 1 µm | Male Blade | Rectangular | Right Angle Surface Mount | Brass | Natural | 10 | 0.049 in | 1.25 mm | Solder Retention | Header | Solder | Board to Cable/Wire | 4.15 mm | 0.163 " | Shrouded - 4 Wall | Tin | Latch Lock | Glass Filled Nylon Polyamide (PA) | 1 | All | UL94 V-0 | ||||||
 Molex | 39.4 çin | 1 çm | 39.4 µin | 1 µm | Male Blade | Rectangular | Right Angle Surface Mount | Brass | Natural | 2 | 0.049 in | 1.25 mm | Solder Retention | Header | Solder | Board to Cable/Wire | 4.15 mm | 0.163 " | Shrouded - 4 Wall | Tin | Latch Lock | Glass Filled Nylon Polyamide (PA) | 1 | All | UL94 V-0 |
