SN74LVC74A-Q1 Series

Enhanced Product Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear And Preset

Catalog

Enhanced Product Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear And Preset

Part	Qualification	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Clock Frequency	Supplier Device Package	Current - Quiescent (Iq)	Mounting Type	Output Type	Number of Bits per Element	Max Propagation Delay @ V, Max CL	Grade	Package / Case [custom]	Package / Case [custom]	Package / Case	Trigger Type	Type	Input Capacitance	Number of Elements	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output High, Low	Package / Case	Package / Case	Package / Case [x]	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments SN74LVC74AQPWRQ1	AEC-Q100	Reset Set(Preset)	3.6 V	2 V	150 MHz	14-TSSOP	10 µA	Surface Mount	Complementary	1	5.2 ns	Automotive	0.173 "	4.4 mm	14-TSSOP	Positive Edge	D-Type	5 pF	2	-40 °C	125 °C	24 mA

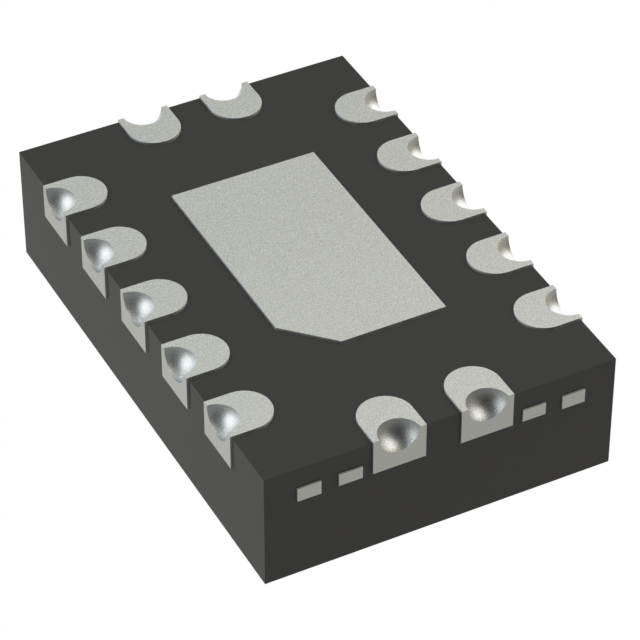

Texas Instruments SN74LVC74ABQAR		Reset Set(Preset)	3.6 V	1.65 V	100 MHz	14-WQFN (3x2.5)	10 µA	Surface Mount	Complementary	1	5.2 ns				14-WFQFN Exposed Pad	Positive Edge	D-Type	5 pF	2	-40 °C	125 °C	24 mA
Texas Instruments SN74LVC74ADBR		Reset Set(Preset)	3.6 V	1.65 V	150 MHz	14-SSOP	10 µA	Surface Mount	Complementary	1	5.2 ns				14-SSOP	Positive Edge	D-Type	5 pF	2	-40 °C	125 °C	24 mA	5.3 mm	0.209 "
Texas Instruments SN74LVC74APWG4		Reset Set(Preset)	3.6 V	1.65 V	150 MHz	14-TSSOP	10 µA	Surface Mount	Complementary	1	5.2 ns		0.173 "	4.4 mm	14-TSSOP	Positive Edge	D-Type	5 pF	2	-40 °C	125 °C	24 mA
Texas Instruments SN74LVC74ADT		Reset Set(Preset)	3.6 V	1.65 V	150 MHz		10 µA	Surface Mount	Complementary	1	5.2 ns				14-SOIC	Positive Edge	D-Type	5 pF	2	-40 °C	125 °C	24 mA			0.154 in	3.9 mm
Texas Instruments SN74LVC74ADRE4		Reset Set(Preset)	3.6 V	1.65 V	150 MHz		10 µA	Surface Mount	Complementary	1	5.2 ns				14-SOIC	Positive Edge	D-Type	5 pF	2	-40 °C	125 °C	24 mA			0.154 in	3.9 mm
Texas Instruments SN74LVC74AD		Reset Set(Preset)	3.6 V	1.65 V	150 MHz		10 µA	Surface Mount	Complementary	1	5.2 ns				14-SOIC	Positive Edge	D-Type	5 pF	2	-40 °C	125 °C	24 mA			0.154 in	3.9 mm
Texas Instruments SN74LVC74AMDREP		Reset Set(Preset)	3.6 V	2 V	100 MHz		10 µA	Surface Mount	Complementary	1	5.2 ns				14-SOIC	Positive Edge	D-Type	5 pF	2			24 mA			0.154 in	3.9 mm	125 °C	-55 °C
Texas Instruments SN74LVC74ADBRG4		Reset Set(Preset)	3.6 V	1.65 V	150 MHz	14-SSOP	10 µA	Surface Mount	Complementary	1	5.2 ns				14-SSOP	Positive Edge	D-Type	5 pF	2	-40 °C	125 °C	24 mA	5.3 mm	0.209 "
Texas Instruments SN74LVC74APWRE4		Reset Set(Preset)	3.6 V	1.65 V	150 MHz	14-TSSOP	10 µA	Surface Mount	Complementary	1	5.2 ns		0.173 "	4.4 mm	14-TSSOP	Positive Edge	D-Type	5 pF	2	-40 °C	125 °C	24 mA

Catalog

Enhanced Product Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear And Preset

Key Features

• Controlled BaselineOne Assembly/Test Site, One Fabrication SiteExtended Temperature Performance of -40°C to 125°C and -55°C to 125°CEnhanced Diminishing Manufacturing Sources (DMS) SupportEnhanced Product-Change NotificationQualification Pedigree(1)Operates From 2 V to 3.6 VInputs Accept Voltages to 5.5 VMax tpdof 5.2 ns at 3.3 VTypical VOLP(Output Ground Bounce) <0.8 V at VCC= 3.3 V, TA= 25°CTypical VOHV(Output VOHUndershoot) >2 V at VCC= 3.3 V, TA= 25°C(1)Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.Controlled BaselineOne Assembly/Test Site, One Fabrication SiteExtended Temperature Performance of -40°C to 125°C and -55°C to 125°CEnhanced Diminishing Manufacturing Sources (DMS) SupportEnhanced Product-Change NotificationQualification Pedigree(1)Operates From 2 V to 3.6 VInputs Accept Voltages to 5.5 VMax tpdof 5.2 ns at 3.3 VTypical VOLP(Output Ground Bounce) <0.8 V at VCC= 3.3 V, TA= 25°CTypical VOHV(Output VOHUndershoot) >2 V at VCC= 3.3 V, TA= 25°C(1)Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.

Description

The SN74LVC74A dual positive-edge-triggered D-type flip-flop is designed for 2.7-V to 3.6-V VCCoperation. A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs, regardless of the levels of the other inputs. WhenPREandCLRare inactive (high), data at the data (D) input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of this device as a translator in a mixed 3.3 V/5 V system environment. The SN74LVC74A dual positive-edge-triggered D-type flip-flop is designed for 2.7-V to 3.6-V VCCoperation. A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs, regardless of the levels of the other inputs. WhenPREandCLRare inactive (high), data at the data (D) input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of this device as a translator in a mixed 3.3 V/5 V system environment.
