NDD04N60Z Series

Power MOSFET 500V 3.4A 2.7 Ohm Single N-Channel DPAK

Catalog

Power MOSFET 500V 3.4A 2.7 Ohm Single N-Channel DPAK

Part	Power Dissipation (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Drain to Source Voltage (Vdss)	Package / Case	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	FET Type	Vgs(th) (Max) @ Id	Supplier Device Package	Rds On (Max) @ Id, Vgs	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Technology	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs	Power Dissipation (Max)
ON Semiconductor NDD04N50Z-1G	61 W	308 pF	500 V	IPAK TO-251-3 Short Leads TO-251AA	3 A	30 V	N-Channel	4.5 V	IPAK	2.7 Ohm	Through Hole	12 nC	MOSFET (Metal Oxide)	10 V	-55 °C	150 °C

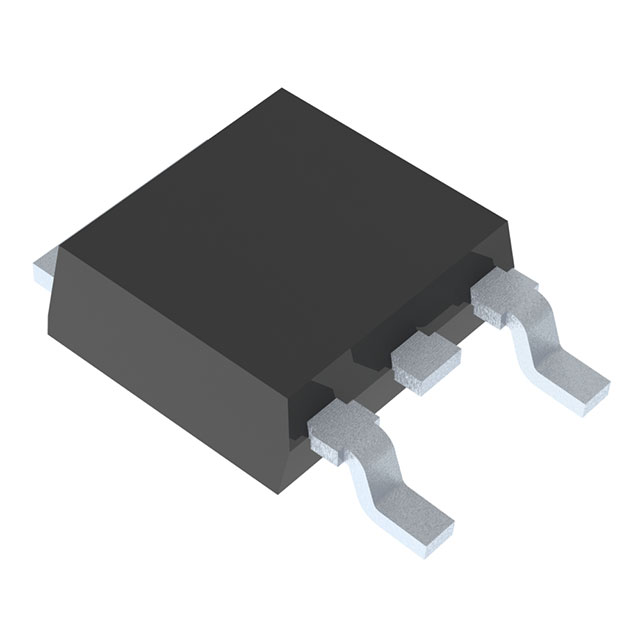

ON Semiconductor NDD04N60ZT4G			600 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	4.1 A	30 V	N-Channel	4.5 V	DPAK	2 Ohm	Surface Mount		MOSFET (Metal Oxide)	10 V	-55 °C	150 °C	29 nC	83 W
ON Semiconductor NDD04N60Z-1G			600 V	IPAK TO-251-3 Short Leads TO-251AA	4.1 A	30 V	N-Channel	4.5 V	IPAK	2 Ohm	Through Hole		MOSFET (Metal Oxide)	10 V	-55 °C	150 °C	29 nC	83 W

Power MOSFET 500V 3.4A 2.7 Ohm Single N-Channel DPAK

• Low ON Resistance

• Low Gate Charge

• 100% Avalanche Tested

• This Device is Pb-Free, Halogen Free/BFR Free and RoHS Compliant

• ESD diode-protected gate

Power MOSFET 500V 2.7 Ohm Single N-Channel
