Low Noise, 2:8 Differential, Fanout Buffer
Key Features
• Ultralow noise floor: −165.9 dBc/Hz or −165.2 dBc/Hz (LVPECL or LVDS) at 2000 MHz
• Configurable to LVPECL or pseudo LVDS outputs
• 2.5 V or 3.3 V LVPECL operation (LVDS 2.5 V only)
• Wideband: 10 MHz to 3500 MHz operating frequency range
• Flexible input interfaceLVPECL, LVDS, CML, and CMOS compatibleAC or dc couplingOn-chip 50 kΩ pull-up/pull-down resistors to VDD and GND
• LVPECL, LVDS, CML, and CMOS compatible
• AC or dc coupling
• On-chip 50 kΩ pull-up/pull-down resistors to VDD and GND
• Multiple output driversUp to 8 differential or 16 single-ended LVPECL or LVDS outputs
• Up to 8 differential or 16 single-ended LVPECL or LVDS outputs
• Low speed digital control via the IN_SEL and CONFIG pins

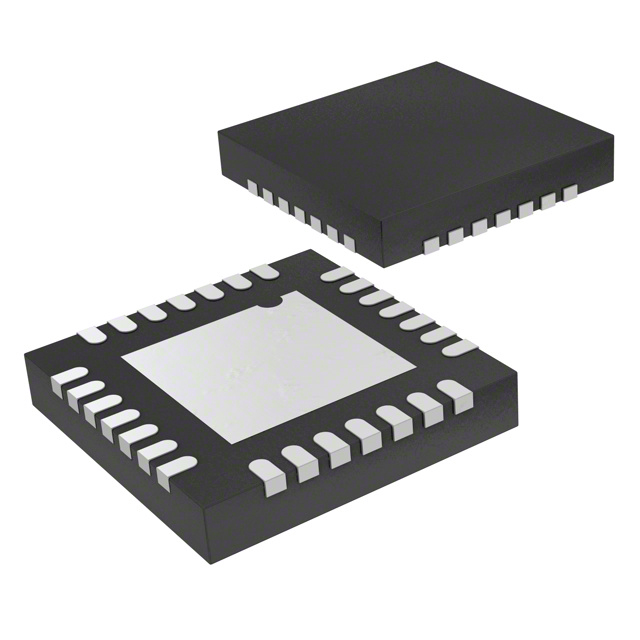

• 28-lead, 5 mm × 5 mm, LFCSP package, 25 mm2
Description
AI
The HMC6832 is an input selectable, 2:8 differential fanout buffer designed for low noise clock distribution. The IN_SEL control pin selects one of the two differential inputs. This input is then buffered to all eight differential outputs. The low jitter outputs of the HMC6832 lead to synchronized low noise switching of downstream circuits, such as mixers, analog-todigital converters (ADCs)/digital-to-analog converters (DACs), or serializer/deserializer (SERDES) devices. The device is capable of low voltage, positive emitter-coupled logic (LVPECL) or low voltage differential signaling (LVDS) configurations by pulling the CONFIG pin low for LVPECL or high or open (internally pulled high) for pseudo LVDS.Product HighlightsMultiple Output Configurations.The CONFIG pin allows the user to select LVPECL or LVDS output termination.Multiple Supply Voltage Operation.The HMC6832 operates at 2.5 V or 3.3 V for LVPECL terminations (2.5 V only for LVDS).Low Noise.The HMC6832 noise is low, typically from −168 dBc/Hz to −162 dBc/Hz up to 3000 MHz.Low Propagation Delay.The HMC6832 displays a low delay, less than 207 ps, typical. Channel skew is also low, ±5 ps, typical.Low Core Current.The HMC6832 has a low core current of 56 mA, typical.ApplicationsSONET, Fibre Channel, GigE clock distributionADC/DAC clock distributionLow skew and jitter clocksWireless/wired communicationsLevel translationHigh performance instrumentationMedical imagingSingle-ended to differential conversions
