Capacitors

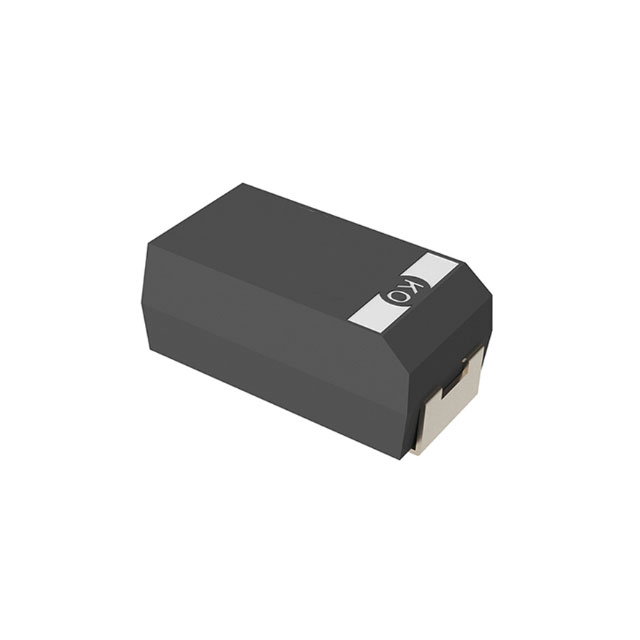

T521B226M016ATE090
ActiveKEMET
CAP TANT POLY 22UF 16V 1411
Deep-Dive with AI
Search across all available documentation for this part.
Capacitors
T521B226M016ATE090
ActiveKEMET
CAP TANT POLY 22UF 16V 1411
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T521B226M016ATE090 |
|---|---|
| Capacitance | 22 µF |
| ESR (Equivalent Series Resistance) | 90 mOhm |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Manufacturer Size Code | B |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.30 | |
| 10 | $ 0.85 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.62 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 1.30 | ||
| 10 | $ 0.85 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.62 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.49 | |||
| Tape & Reel (TR) | 2000 | $ 0.47 | ||
| 4000 | $ 0.45 | |||
| 6000 | $ 0.44 | |||
| 10000 | $ 0.43 | |||
| 14000 | $ 0.42 | |||
| 20000 | $ 0.42 | |||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 2.28 | |
| 4000 | $ 2.12 | |||
| 8000 | $ 1.98 | |||
| 12000 | $ 1.91 | |||
| 20000 | $ 1.88 | |||
Description
General part information
T521B Series
22 µF Molded Tantalum Polymer Capacitor 16 V 1411 (3528 Metric) 90mOhm @ 100kHz
