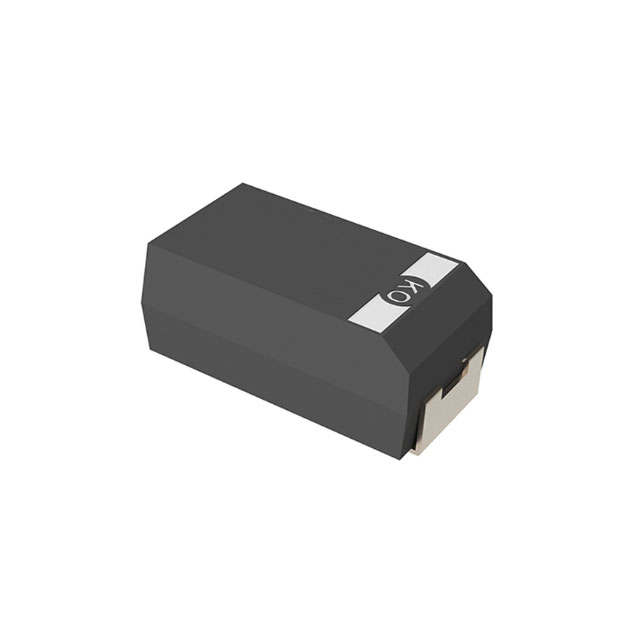

T521B Series

Manufacturer: KEMET

Catalog

CAP, 22ΜF, 20V, 20% ROHS COMPLIANT: YES

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Lifetime @ Temp.	Capacitance	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Mounting Type	Type
KEMET T521B226M020ATE090	0.079 in	2 mm	3528 Metric	1411	-55 C	105 ░C	20 V	90 mOhm	B	2000 Hrs	22 µF	20 %	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	Surface Mount	Molded
KEMET T521B685M035ATE2007280	0.079 in	2 mm	3528 Metric	1411	-55 C	105 ░C	35 V	200 mOhm	B	2000 Hrs	6.8 µF	20 %	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	Surface Mount	Molded
KEMET T521B106M020ATE100	0.079 in	2 mm	3528 Metric	1411	-55 C	125 °C	20 V	100 mOhm	B	2000 Hrs	10 µF	20 %	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	Surface Mount	Molded
KEMET T521B105M063ATE200	0.079 in	2 mm	3528 Metric	1411	-55 C	105 ░C	63 V	200 mOhm	B	2000 Hrs	1 µF	20 %	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	Surface Mount	Molded
KEMET T521B475M035ATE2007280	0.079 in	2 mm	3528 Metric	1411	-55 C	105 ░C	35 V	200 mOhm	B	2000 Hrs	4.7 µF	20 %	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	Surface Mount	Molded
KEMET T521B225M050ATE200	0.079 in	2 mm	3528 Metric	1411	-55 C	105 ░C	50 VDC	200 mOhm	B	2000 Hrs	2.2 µF	20 %	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	Surface Mount	Molded
KEMET T521B226M016ATE090	0.079 in	2 mm	3528 Metric	1411	-55 C	105 ░C	16 V	90 mOhm	B		22 µF	20 %	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	Surface Mount	Molded
KEMET T521B684M063ATE2007280	0.079 in	2 mm	3528 Metric	1411	-55 C	105 ░C	63 V	200 mOhm	B	2000 Hrs	0.68 µF	20 %	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	Surface Mount	Molded
KEMET T521B684M063ATE200	0.079 in	2 mm	3528 Metric	1411	-55 C	105 ░C	63 V	200 mOhm	B	2000 Hrs	0.68 µF	20 %	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	Surface Mount	Molded
KEMET T521B475M035ATE200	0.079 in	2 mm	3528 Metric	1411	-55 C	105 ░C	35 V	200 mOhm	B	2000 Hrs	4.7 µF	20 %	3.5 mm	0.11 "	2.8 mm	0.138 in	General Purpose	Surface Mount	Molded
