9 UFBGA
Integrated Circuits (ICs)

A21SP16J

Active
STMicroelectronics

AUDIO POWER AMPLIFIER, -40 C, FLIP CHIP, 85 C ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDS10233+3
9 UFBGA
Integrated Circuits (ICs)

A21SP16J

Active
STMicroelectronics

AUDIO POWER AMPLIFIER, -40 C, FLIP CHIP, 85 C ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDS10233+3

Technical Specifications

Parameters and characteristics for this part

SpecificationA21SP16J
FeaturesDepop, Thermal Protection
Max Output Power x Channels @ Load1.4 W
Max Output Power x Channels @ Load [x]1
Mounting TypeSurface Mount
Operating Temperature [Max]85 C
Operating Temperature [Min]-40 ¯C
Output Type1-Channel (Mono)

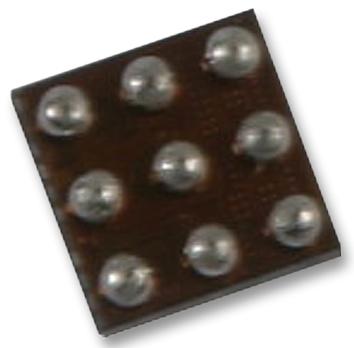

Package / CaseFCBGA, 9-UFBGA
Supplier Device Package9-FlipChip
Supplier Device Package [x]1.6
Supplier Device Package [y]1.6
TypeClass D
Voltage - Supply [Max]5.5 V
Voltage - Supply [Min]2.4 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.03
10$ 0.92
25$ 0.88
100$ 0.72
250$ 0.67
500$ 0.59
1000$ 0.47
2500$ 0.44
Digi-Reel® 1$ 1.03
10$ 0.92
25$ 0.88
100$ 0.72
250$ 0.67
500$ 0.59
1000$ 0.47
2500$ 0.44
Tape & Reel (TR) 5000$ 0.42
10000$ 0.40
25000$ 0.39
NewarkEach 1$ 1.00
10$ 0.77
100$ 0.65
500$ 0.60
1000$ 0.58
2500$ 0.56

Description

General part information

A21SP16 Series

The A21SP16 is a differential class-D BTL power amplifier. It is able to drive up to 2.3 W into a 4 Ω load and 1.4 W into a 8 Ω load at 5 V. It achieves outstanding efficiency (88% typ.) compared to classical Class-AB audio amps.

The gain of the device can be controlled via two external gain-setting resistors. Pop & click reduction circuitry provides low on/off switch noise while allowing the device to start within 5 ms. A standby function (active low) allows the reduction of current consumption to 10 nA typ.
