Circuit Protection
0314030.MXP
ActiveLittelfuse/Commercial Vehicle Products
ELECTRIC FUSE, FAST BLOW, 30A, 250VAC, 125VDC, 100A (IR), INLINE/HOLDER, 3AB, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
Circuit Protection
0314030.MXP
ActiveLittelfuse/Commercial Vehicle Products
ELECTRIC FUSE, FAST BLOW, 30A, 250VAC, 125VDC, 100A (IR), INLINE/HOLDER, 3AB, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0314030.MXP |
|---|---|
| Approval Agency | CE, K-Mark, UL, PSE |
| Breaking Capacity @ Rated Voltage | 400 A, 100 A |
| Current Rating (Amps) | 30 A |
| DC Cold Resistance | 0.00182 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 2490 |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3AB, 3AG |
| Package / Case [x] | 1/4 |
| Package / Case [y] | 1-1/4 |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 0.25 in |
| Size / Dimension [diameter] | 6.35 mm |
| Size / Dimension [x] | 31.75 mm |
| Size / Dimension [x] | 1.25 " |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 VDC |
0314030 Series
FUSE 250V FA 3AB ROHS 30A
| Part | Current Rating (Amps) | Approval Agency | Mounting Type | DC Cold Resistance | Fuse Type | Package / Case | Package / Case [y] | Package / Case [x] | Breaking Capacity @ Rated Voltage | Melting I²t | Voltage Rating - DC | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Response Time | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Littelfuse/Commercial Vehicle Products | 30 A | CE K-Mark PSE UL | Requires Holder | 0.00182 Ohms | Cartridge Ceramic | 3AB 3AG | 1-1/4 | 1/4 | 100 A 400 A | 2490 | 125 VDC | 31.75 mm | 0.25 in | 6.35 mm | 1.25 " | Fast Blow | 250 V | -55 °C | 125 °C | |
 Littelfuse/Commercial Vehicle Products | 30 A | CE KC PSE UL | Requires Holder | 0.00182 Ohms | Cartridge Ceramic | 3AB 3AG | 1-1/4 | 1/4 | 100 A 400 A | 150 V | 31.75 mm | 0.25 in | 6.35 mm | 1.25 " | Fast Blow | 250 V | -55 °C | 125 °C | 2490 | |
 Littelfuse/Commercial Vehicle Products | 30 A | CE KC METI UL | Requires Holder | 0.00182 Ohms | Cartridge Ceramic | 3AB 3AG | 1-1/4 | 1/4 | 100 A | 31.75 mm | 0.25 in | 6.35 mm | 1.25 " | Fast Blow | 250 V | -55 °C | 125 °C | 2490 | ||
 Littelfuse/Commercial Vehicle Products | 30 A | CE K-Mark PSE UL | Requires Holder | 0.00182 Ohms | Cartridge Ceramic | 3AB 3AG | 1-1/4 | 1/4 | 100 A 400 A | 2490 | 125 VDC | 31.75 mm | 0.25 in | 6.35 mm | 1.25 " | Fast Blow | 250 V | -55 °C | 125 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.55 | |
| 5 | $ 1.48 | |||
| 10 | $ 1.40 | |||
| 50 | $ 1.13 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.93 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.70 | |||
| 5000 | $ 0.68 | |||
Description
General part information
0314030 Series

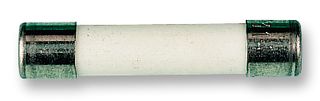

The 3AB Fast-Acting Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
