Technical Specifications
Parameters and characteristics for this part
| Specification | CWN-370-50-0000 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Nickel |
| Contact Finish Thickness - Mating | 0.25 µm |
| Contact Finish Thickness - Mating | 10 µin |
| Contact Finish Thickness - Post | 1.27 µm |
| Contact Finish Thickness - Post | 50 µin |
| Contact Length - Mating [x] | 0.24 in |
| Contact Length - Mating [x] | 6.1 mm |
| Contact Length - Post | 15.49 mm |
| Contact Length - Post | 0.61 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Blue |
| Insulation Height [z] | 0.681 in |
| Insulation Height [z] | 17.3 mm |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows [custom] | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Pitch - Mating | 0.1 " |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Row Spacing - Mating [x] | 2.54 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Wire Wrap |
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Material Flammability Rating | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Connector Type | Contact Finish - Mating | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height [z] | Insulation Height [z] | Contact Type | Contact Length - Post | Contact Length - Post | Number of Positions | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Fastening Type | Number of Positions Loaded | Number of Rows [custom] | Contact Shape | Insulation Material | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 1.27 µm | 50 µin | Wire Wrap | UL94 V-0 | 0.24 in | 6.1 mm | Phosphor Bronze | Through Hole | -55 C | 125 °C | Shrouded - 4 Wall | Header | Gold | Nickel | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 0.681 in | 17.3 mm | Male Pin | 15.49 mm | 0.61 in | 16 | Board to Cable/Wire | 0.76 Ám | 30 Áin | Blue | Push-Pull | All | 2 | Circular | Thermoplastic | |
 CW Industries | 1.27 µm | 50 µin | Wire Wrap | UL94 V-0 | 0.24 in | 6.1 mm | Phosphor Bronze | Through Hole | -55 C | 125 °C | Shrouded - 4 Wall | Header | Gold | Nickel | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 0.681 in | 17.3 mm | Male Pin | 15.49 mm | 0.61 in | 14 | Board to Cable/Wire | 0.25 µm | 10 µin | Blue | Push-Pull | All | 2 | Circular | Thermoplastic | |
CW Industries | 1.27 µm | 50 µin | Wire Wrap | UL94 V-0 | 0.24 in | 6.1 mm | Phosphor Bronze | Through Hole | -55 C | 125 °C | Shrouded - 4 Wall | Header | Gold | Nickel | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 0.681 in | 17.3 mm | Male Pin | 15.49 mm | 0.61 in | 50 | Board to Cable/Wire | 0.76 Ám | 30 Áin | Blue | Push-Pull | All | 2 | Circular | Thermoplastic | |
 CW Industries | 1.27 µm | 50 µin | Wire Wrap | UL94 V-0 | 0.24 in | 6.1 mm | Phosphor Bronze | Through Hole | -55 C | 125 °C | Shrouded - 4 Wall | Header | Gold | Nickel | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 0.681 in | 17.3 mm | Male Pin | 15.49 mm | 0.61 in | 16 | Board to Cable/Wire | 0.25 µm | 10 µin | Blue | Push-Pull | All | 2 | Circular | Thermoplastic | |
CW Industries | 1.27 µm | 50 µin | Wire Wrap | UL94 V-0 | 0.24 in | 6.1 mm | Phosphor Bronze | Through Hole | -55 C | 125 °C | Shrouded - 4 Wall | Header | Gold | Nickel | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 0.681 in | 17.3 mm | Male Pin | 15.49 mm | 0.61 in | 50 | Board to Cable/Wire | 0.25 µm | 10 µin | Blue | Push-Pull | All | 2 | Circular | Thermoplastic | |
CW Industries | 1.27 µm | 50 µin | Wire Wrap | UL94 V-0 | 0.24 in | 6.1 mm | Phosphor Bronze | Through Hole | -55 C | 125 °C | Shrouded - 4 Wall | Header | Gold | Nickel | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 0.681 in | 17.3 mm | Male Pin | 15.49 mm | 0.61 in | Board to Cable/Wire | 0.76 Ám | 30 Áin | Blue | Push-Pull | All | 2 | Circular | Thermoplastic | 34 | |
 CW Industries | 1.27 µm | 50 µin | Wire Wrap | UL94 V-0 | 0.24 in | 6.1 mm | Phosphor Bronze | Through Hole | -55 C | 125 °C | Shrouded - 4 Wall | Header | Gold | Nickel | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 0.681 in | 17.3 mm | Male Pin | 15.49 mm | 0.61 in | Board to Cable/Wire | 0.25 µm | 10 µin | Blue | Push-Pull | All | 2 | Circular | Thermoplastic | 34 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.72 | |
| 10 | $ 9.00 | |||
| 100 | $ 7.01 | |||
| 500 | $ 5.96 | |||
| 1000 | $ 5.58 | |||
| N/A | 0 | $ 9.67 | ||
Description
General part information
CWN-370 Series

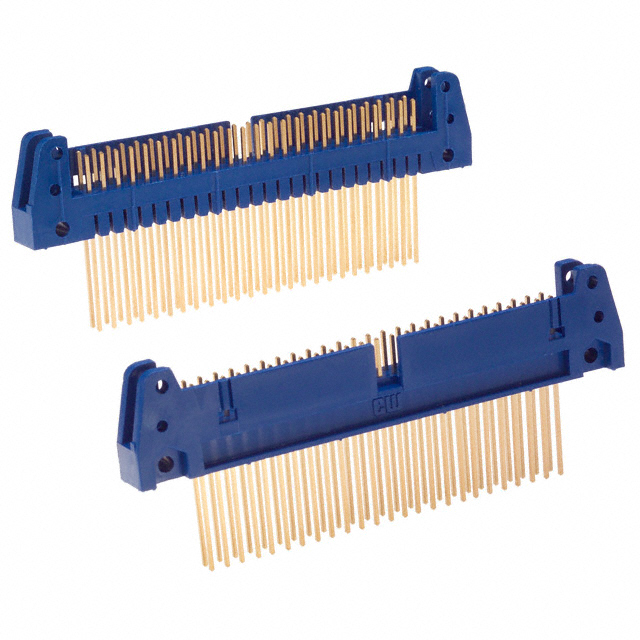

Connector Header Through Hole 50 position 0.100" (2.54mm)
