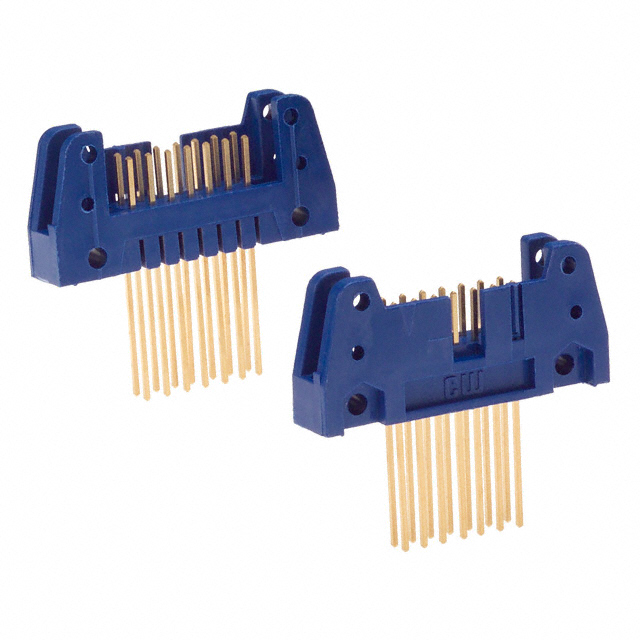

CWN-370-14-0000

Active

CW Industries

CONN HEADER VERT 14POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWN-370-14-0000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	0.61 in
Contact Length - Post	15.49 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Blue
Insulation Height	0.681 in
Insulation Height	17.3 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Wire Wrap

CWN-370 Series

Part	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Height	Insulation Height	Contact Material	Contact Type	Style	Insulation Material	Shrouding	Number of Positions	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Material Flammability Rating	Mounting Type	Number of Rows	Number of Positions Loaded	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Shape	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating [x]
CW Industries CWN-370-14-0000	0.1 in	2.54 mm	Header	0.681 in	17.3 mm	Phosphor Bronze	Male Pin	Board to Cable/Wire	Thermoplastic	Shrouded - 4 Wall	14	Gold	0.61 in	15.49 mm	1.27 µm	50 µin	Blue	UL94 V-0	Through Hole	2	All	Wire Wrap	2.54 mm	0.1 in	Push-Pull	Circular	Nickel	10 çin	0.25 çm	-55 °C	125 °C	6.1 mm	0.24 in
CW Industries CWN-370-50-0021	0.1 in	2.54 mm	Header	0.681 in	17.3 mm	Phosphor Bronze	Male Pin	Board to Cable/Wire	Thermoplastic	Shrouded - 4 Wall	50	Gold	0.61 in	15.49 mm	1.27 µm	50 µin	Blue	UL94 V-0	Through Hole	2	All	Wire Wrap	2.54 mm	0.1 in	Push-Pull	Circular	Nickel	30 Áin	0.76 Ám	-55 °C	125 °C	6.1 mm	0.24 in
CW Industries CWN-370-50-0000	0.1 in	2.54 mm	Header	0.681 in	17.3 mm	Phosphor Bronze	Male Pin	Board to Cable/Wire	Thermoplastic	Shrouded - 4 Wall	50	Gold	0.61 in	15.49 mm	1.27 µm	50 µin	Blue	UL94 V-0	Through Hole	2	All	Wire Wrap	2.54 mm	0.1 in	Push-Pull	Circular	Nickel	10 çin	0.25 çm	-55 °C	125 °C	6.1 mm	0.24 in
CW Industries CWN-370-34-0021	0.1 in	2.54 mm	Header	0.681 in	17.3 mm	Phosphor Bronze	Male Pin	Board to Cable/Wire	Thermoplastic	Shrouded - 4 Wall	34	Gold	0.61 in	15.49 mm	1.27 µm	50 µin	Blue	UL94 V-0	Through Hole	2	All	Wire Wrap	2.54 mm	0.1 in	Push-Pull	Circular	Nickel	30 Áin	0.76 Ám	-55 °C	125 °C	6.1 mm	0.24 in
CW Industries CWN-370-34-0000	0.1 in	2.54 mm	Header	0.681 in	17.3 mm	Phosphor Bronze	Male Pin	Board to Cable/Wire	Thermoplastic	Shrouded - 4 Wall	34	Gold	0.61 in	15.49 mm	1.27 µm	50 µin	Blue	UL94 V-0	Through Hole	2	All	Wire Wrap	2.54 mm	0.1 in	Push-Pull	Circular	Nickel	10 çin	0.25 çm	-55 °C	125 °C	6.1 mm	0.24 in
