19430060445
Connectors, Interconnects

19430060447

Active
HARTING

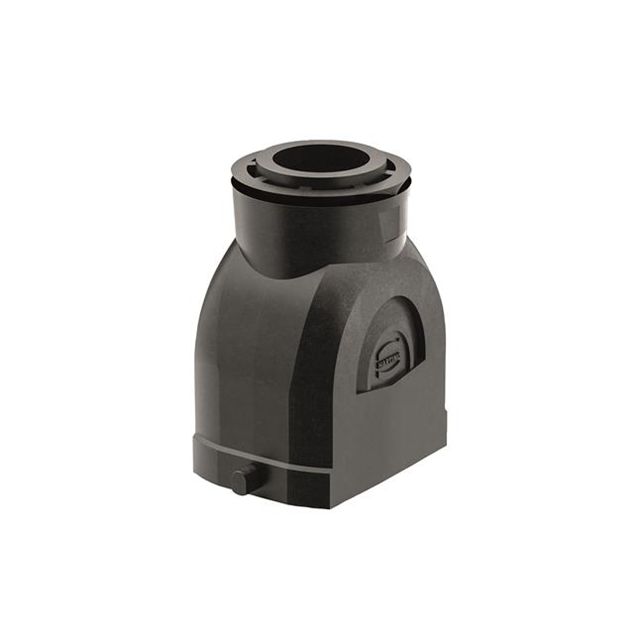

HEAVY DUTY CONNECTOR, IP66, M32, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER, 6B

Deep-Dive with AI

Search across all available documentation for this part.

19430060445
Connectors, Interconnects

19430060447

Active
HARTING

HEAVY DUTY CONNECTOR, IP66, M32, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 1 LEVER, 6B

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification19430060447
Connector TypeHood
Housing ColorBlack
Housing MaterialGlass Filled, Polyamide (PA), Nylon
Ingress ProtectionIP66 - Dust Tight, Water Resistant
Lock LocationLocking Clip (1) on Base Bottom
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 C
Size6B
StyleTop Entry
Thread SizeM32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 35.59
10$ 26.26
25$ 23.58
50$ 21.84
100$ 20.32
250$ 18.58
500$ 17.46
N/A 0$ 26.42
NewarkEach 1$ 25.46
10$ 23.09
25$ 22.16
50$ 20.71
100$ 19.92
250$ 18.87

Description

General part information

19430060 Series

Han-Eco® B is a new series of high-performance plastic hoods and housings, which are suitable for both indoor and outdoor applications. The range complies with standards IEC 61948 and EN 45545-2, offers IP66 protection and substantial weight savings compared to traditional metal housings. With Han-Eco® B, you also have the ability to rear mount inserts. Instead of installing cables through the bulkhead mounted housing, pre-assembled inserts can be directly snapped into the housing from the rear. Both monobloc and modular inserts can be used with the Han-Eco® B, giving you an unparalleled choice of data, signal and power options.
