19430060 Series
Manufacturer: HARTING
Beta
⌘K

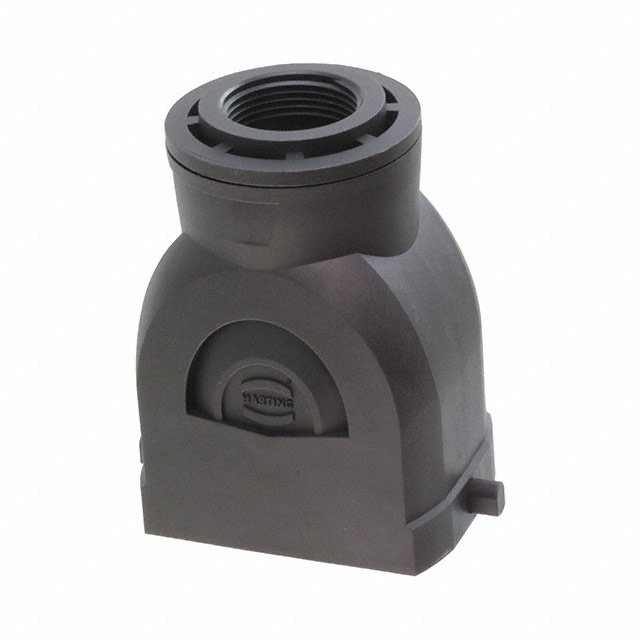

HAN-ECO 6B CABLE TO CABLE HOOD,
| Part | Style | Features | Housing Material | Connector Type | Thread Size | Size | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Lock Location | Housing Color | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Top Entry Top or Bottom Entry | Cable to Cable | Glass Filled Nylon Polyamide (PA) | Hood - Coupling | M20 | 6B | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Locking Clip (1) on Hood | Black | |||||||||||
 HARTING | Top Entry | Glass Filled Nylon Polyamide (PA) | Hood | M25 | 6B | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Black | ||||||||||||
 HARTING | Bottom Entry | Glass Filled Nylon Polyamide (PA) | Base - Panel Mount | 6B | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Black | 1.421 in | 36.1 mm | 2.362 in | 60 mm | 81 mm | 3.189 in | |||||||
 HARTING | Side Entry Dual | Glass Filled Nylon Polyamide (PA) | Base - Box Mount | M32 | 6B | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Black | 84 mm | 2.559 in | 3.465 " | 3.307 " | 88 mm | 65 mm | ||||||
 HARTING | Top Entry Top or Bottom Entry | Cable to Cable | Glass Filled Nylon Polyamide (PA) | Hood - Coupling | M25 | 6B | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Locking Clip (1) on Hood | Black | |||||||||||
 HARTING | Top Entry | Glass Filled Nylon Polyamide (PA) | Hood | M20 | 6B | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Black | ||||||||||||
 HARTING | Bottom Entry | Cover | Glass Filled Nylon Polyamide (PA) | Base - Panel Mount | 6B | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Black | 1.421 in | 36.1 mm | 2.362 in | 60 mm | 81 mm | 3.189 in | ||||||
 HARTING | Top Entry | Glass Filled Nylon Polyamide (PA) | Hood | M32 | 6B | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Locking Clip (1) on Base Bottom | Black |
